Overview of Components
30º30º
30º30º
30º30º

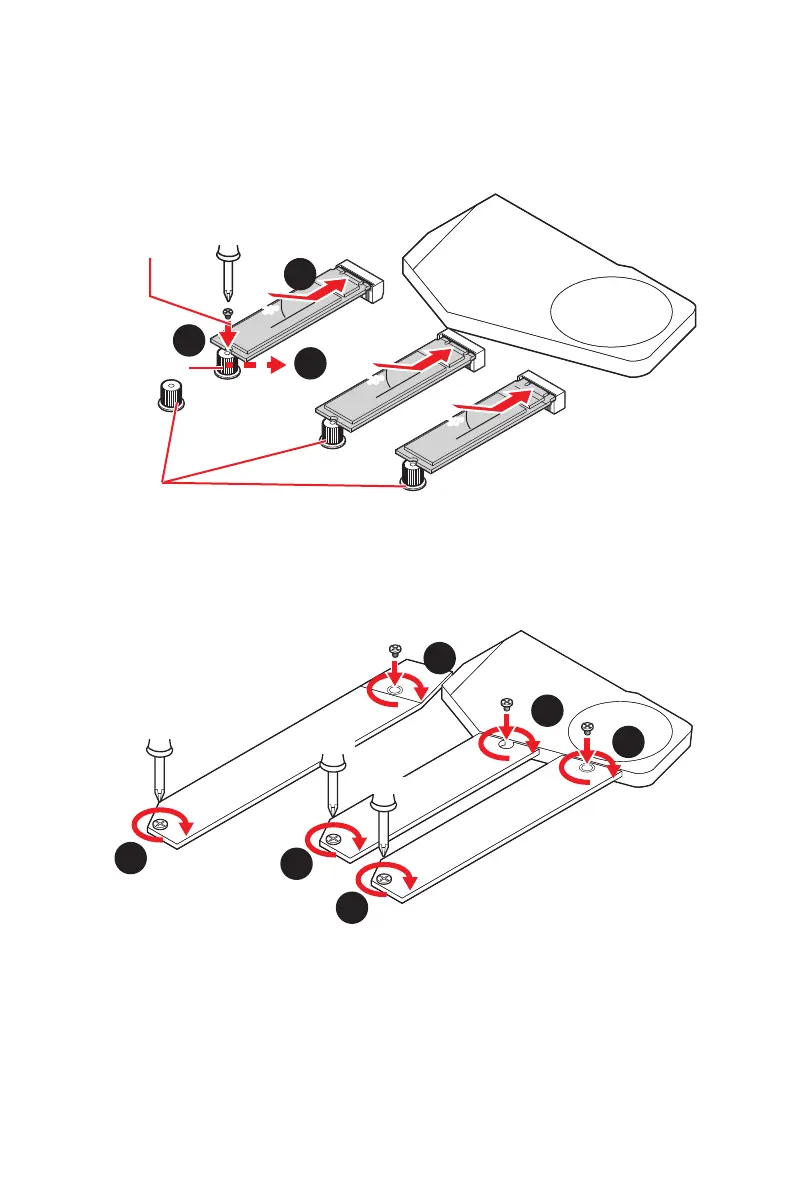

4. Insert your M.2 SSDs into the M.2 slots at a 30-degree angle.
5. If the M.2 SSD is shorter than the M.2 SHIELD FROZR heatsink, please secure the
M.2 SSD in place with M.2 screw. If the length of M.2 SSD equals the M.2 SHIELD
FROZR heatsink, please skip this step.
6
6
6
6
6
6
3
4
M.2 screw
M.2 standoff
heatsink
standoff
5
6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
