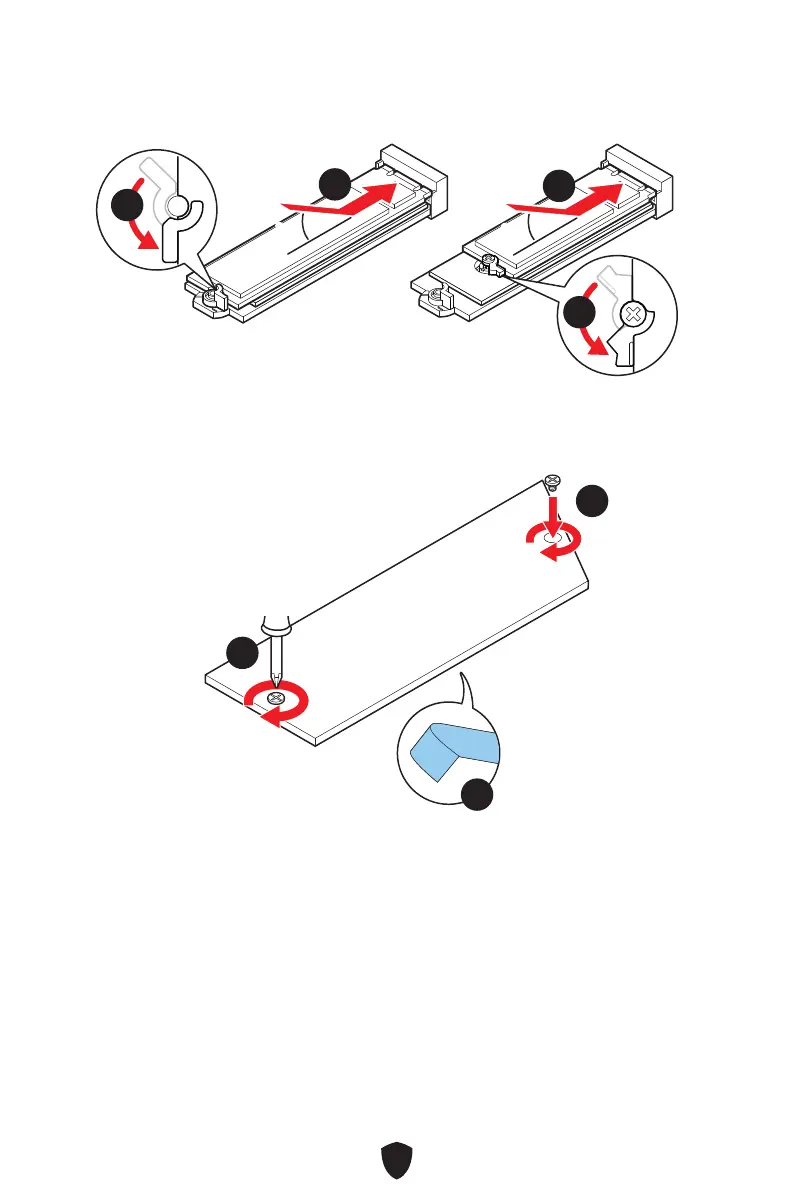

5. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
6. Rotate the EZ M.2 Clip to fix the M.2 SSD.
30º30º
30º30º
2280 SSD
2260 SSD
66
55
55
66
7. Remove the protective films from the thermal pads under the M.2 Shield Frozr
heatsink.
8. Put the M.2 Shield Frozr heatsink back in place and secure it.
77
88
88
