Installing M.2 module into M2_4 & M2_5 slots

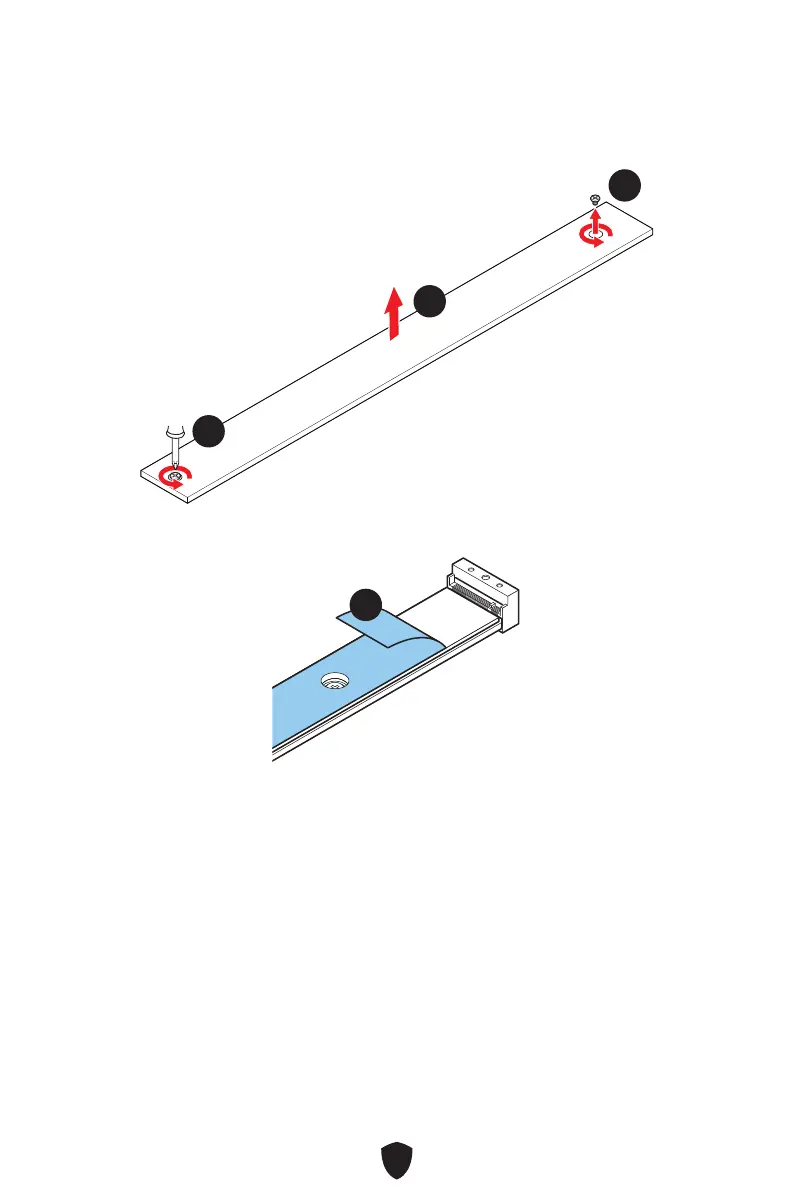

1. Loosen the screws of M.2 Shield Frozr heatsink.
2. Lift up the M.2 Shield Frozr heatsink and remove it.
11
11
22
3. Remove the protective films from the M.2 thermal pads on the M.2 plate.
33
