39
4. Please follow the below instructions according to your SSD length. Skip this step if
you install 2280 SSD into M2_5 slot.

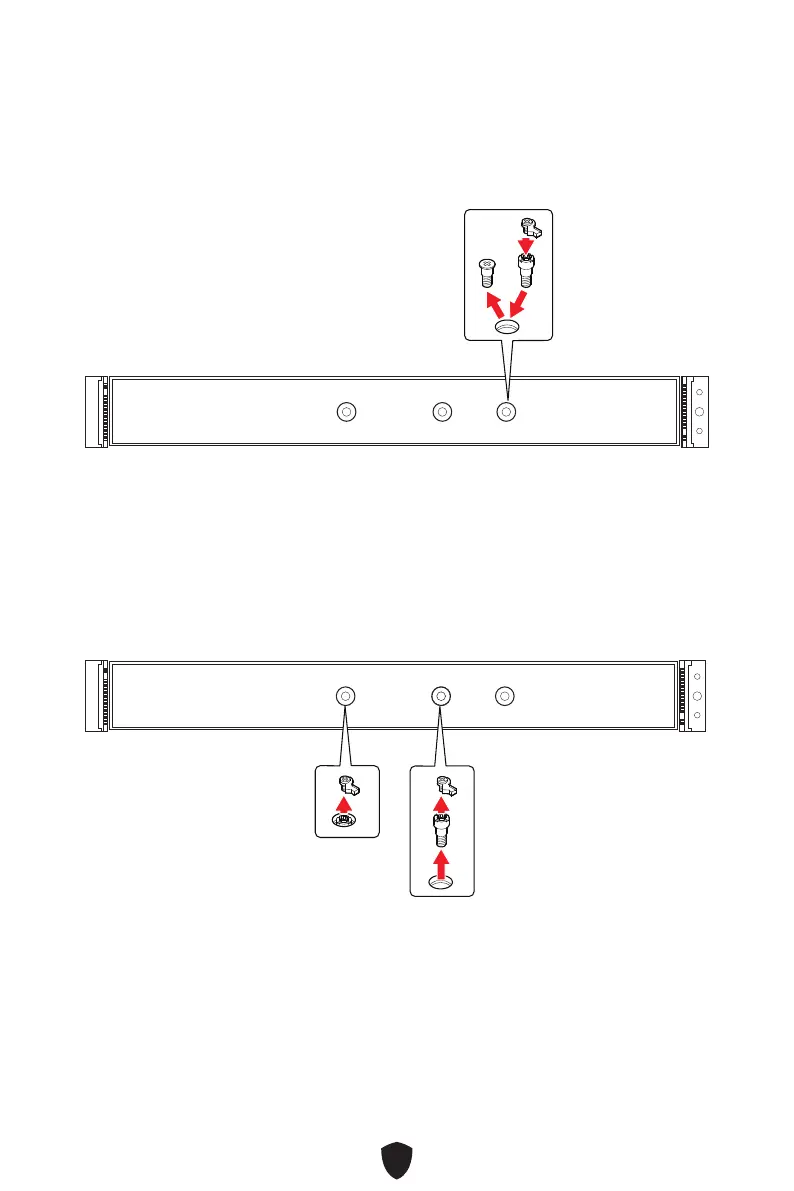

• Installing 2260 SSD into M2_5 slot
Remove the installed standoff from the M.2 plate and install EZ M.2 Clip in the
2260 screw hole.
2260
• Installing 22110 SSD into M2_5 slot
Remove the installed EZ M.2 Clip in the 2280 screw hole and remove the upper
component of EZ M.2 Clip in the 22110 screw hole.
2280
22110
To Next Page
