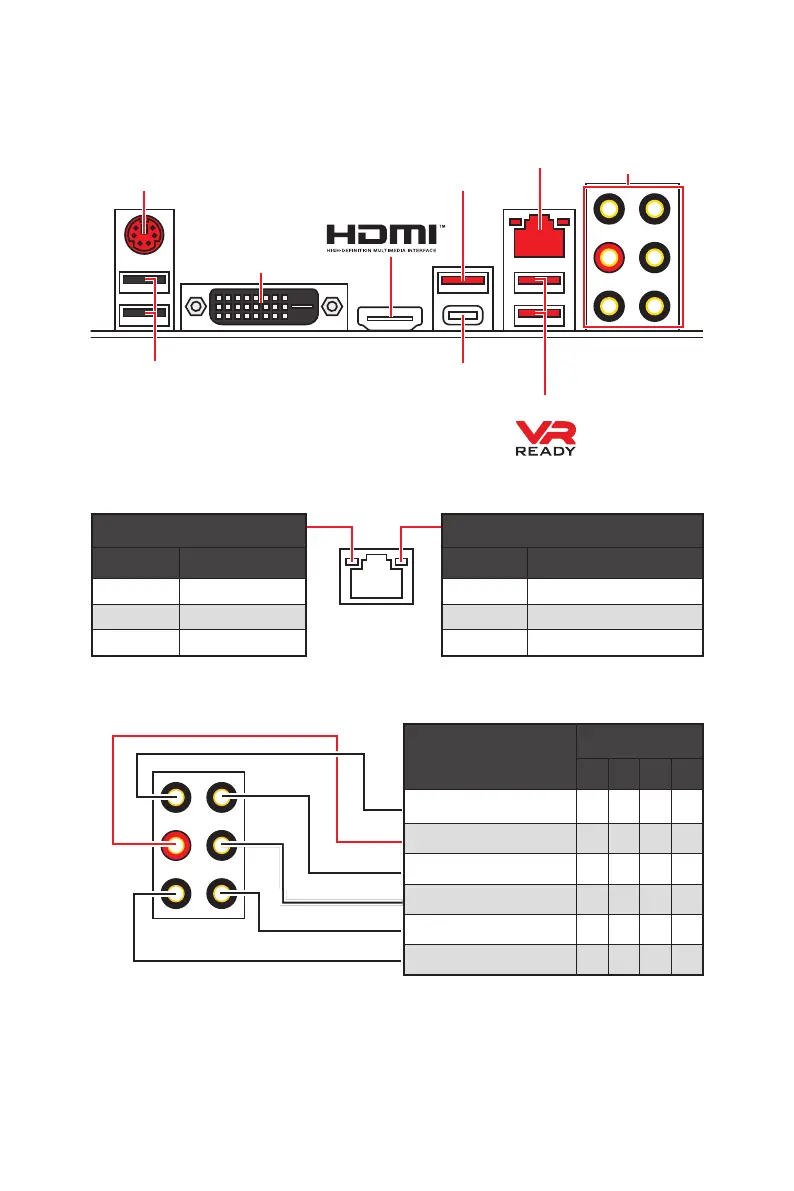

Rear I/O Panel
Rear I/O Panel
PS/2
LAN
DVI-D
Audio Ports
USB 3.1 Gen1
USB 2.0
USB 3.1 Gen2
USB 3.1 Gen2 Type-C
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Line-In
Line-Out/ Front Speaker Out ● ● ● ●
Rear Speaker Out ● ● ●
Center/ Subwoofer Out ● ●
Side Speaker Out ●
Mic In
(●: connected, Blank: empty)

MSI MPG GAMING PLUS Z390 Specifications

General

Chipset	Intel Z390
Form Factor	ATX
Memory Slots	4
Maximum Memory	64 GB
Memory Type	DDR4
PCIe x16 Slots	2
PCIe x1 Slots	4
SATA Ports	6
M.2 Slots	2
USB 3.1 Gen2 Type-A Ports	1
USB 3.1 Gen2 Type-C Ports	1
USB 3.1 Gen1 Ports	4
USB 2.0 Ports	6
Audio	Realtek ALC892
LAN	Intel I219-V
CPU Socket	LGA 1151
RAID Support	0, 1, 5, 10
