Overview of Components

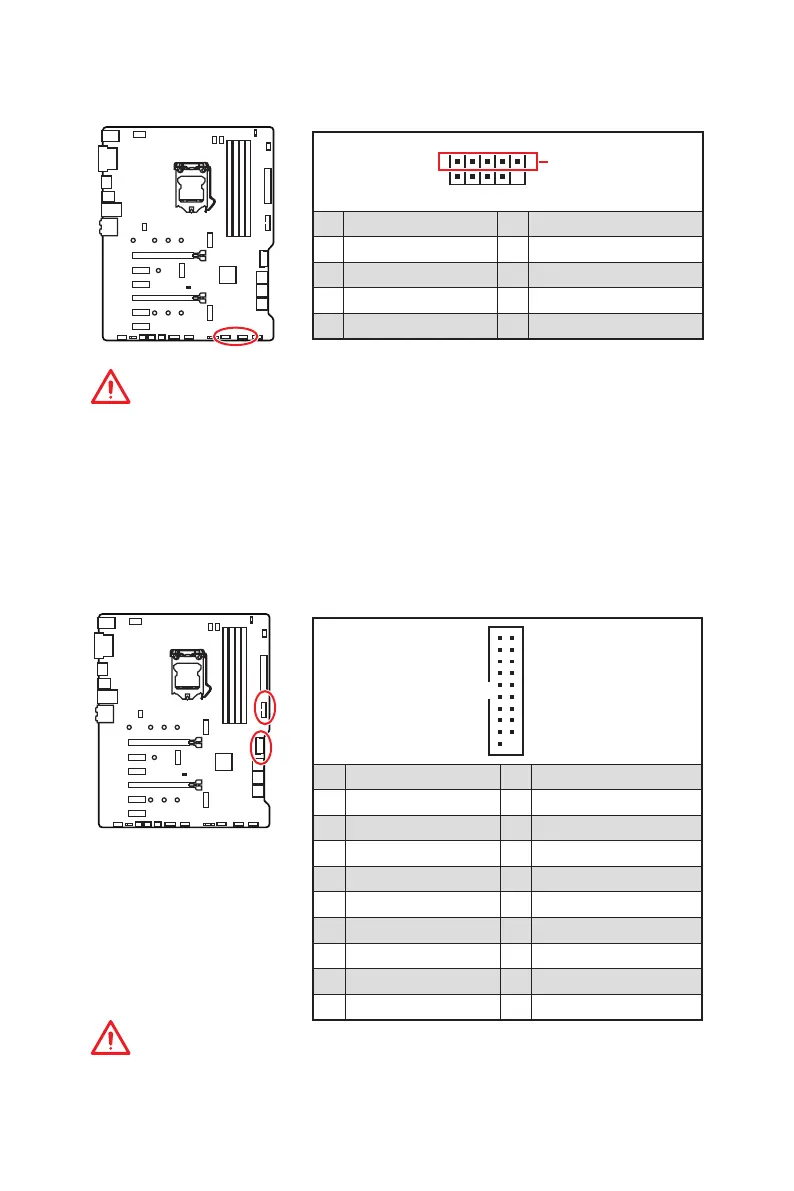

JUSB1~2: USB 2.0 Connectors

2 10

Note

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 Ground 8 Ground

9 No Pin 10 NC

Note : For JUSB2, the set of pins is unavailable when a Intel wireless-AC

(CNVi) module is installed in the CNVI_1 slot.

Important

Note that the VCC and Ground pins must be connected correctly to avoid possible

damage.

In order to recharge your iPad,iPhone and iPod through USB ports, please install MSI

DRAGON CENTER utility.

The CNVI_1 and JUSB2 share the same bandwidth. And one USB port connecting to

JUSB2 is unavailable when the CNVI_1 slot has been installed.

JUSB3~4: USB 3.1 Gen1 Connectors

These connectors allow you to connect USB 3.1 Gen1 ports on the front panel.

10 11

1 Power 11 USB2.0+

2 USB3_RX_DN 12 USB2.0-

3 USB3_RX_DP 13 Ground

4 Ground 14 USB3_TX_C_DP

5 USB3_TX_C_DN 15 USB3_TX_C_DN

6 USB3_TX_C_DP 16 Ground

7 Ground 17 USB3_RX_DP

8 USB2.0- 18 USB3_RX_DN

9 USB2.0+ 19 Power

10 GND 20 No Pin

Important

Note that the Power and Ground pins must be connected correctly to avoid possible

damage.
