Overview of Components

Important

The JRGB1 & JRGB2 connectors support 5050 RGB LED strip (12V/G/R/B) with the

maximum power rating of 3A (12V).

Please keeping the LED strip shorter than 2 meters to prevent dimming.

Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing the LED strip.

Please use MSI’s software to control the extended LED strip.

JRGB1, JRGB2: RGB LED connectors

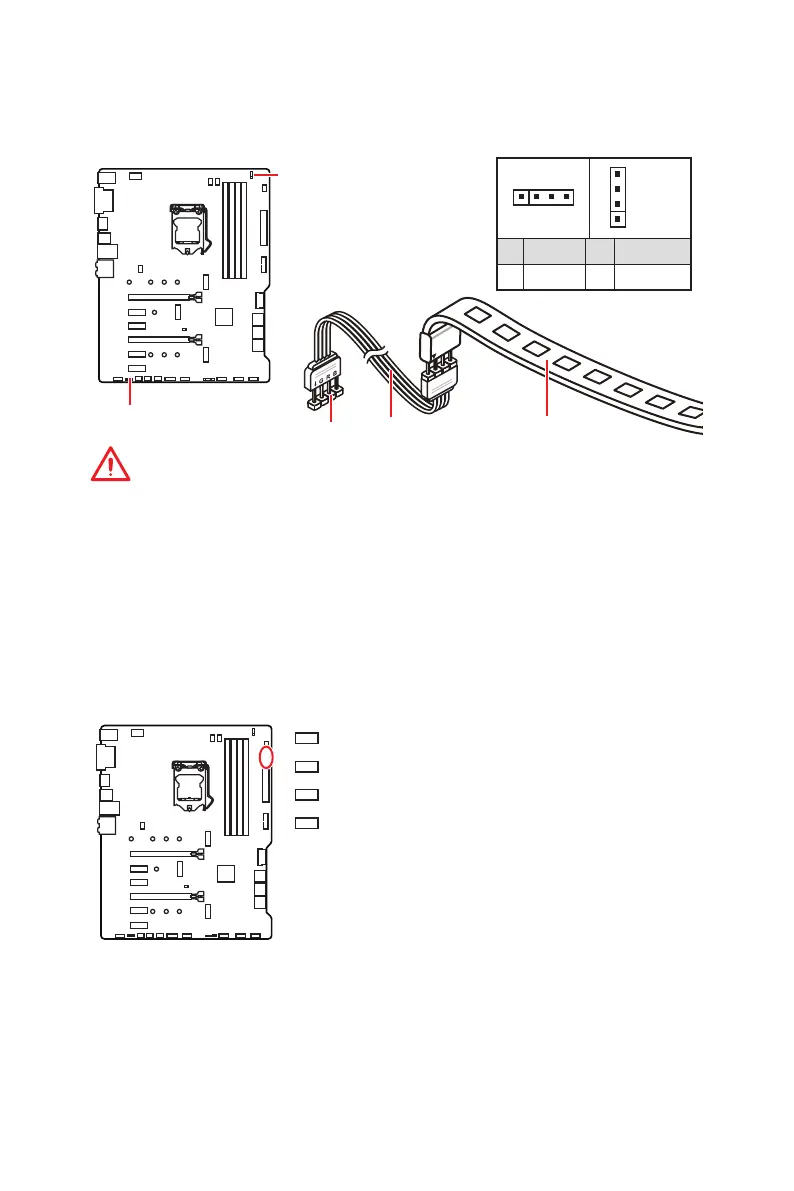

The JRGB1/ JRGB2 connector allows you to connect the 5050 RGB LED strips 12V.

JRGB1/ 2

JRGB1

JRGB2

Extension cable

5050 RGB LED strips 12V

JRGB1

JRGB2

1 +12V 2 G

3 R 4 B

EZ Debug LED

These LEDs indicate the debug status of the motherboard.

CPU - indicates CPU is not detected or fail.

DRAM - indicates DRAM is not detected or fail.

VGA - indicates GPU is not detected or fail.

BOOT - indicates the booting device is not detected

or fail.
