21
Übersicht der Komponenten

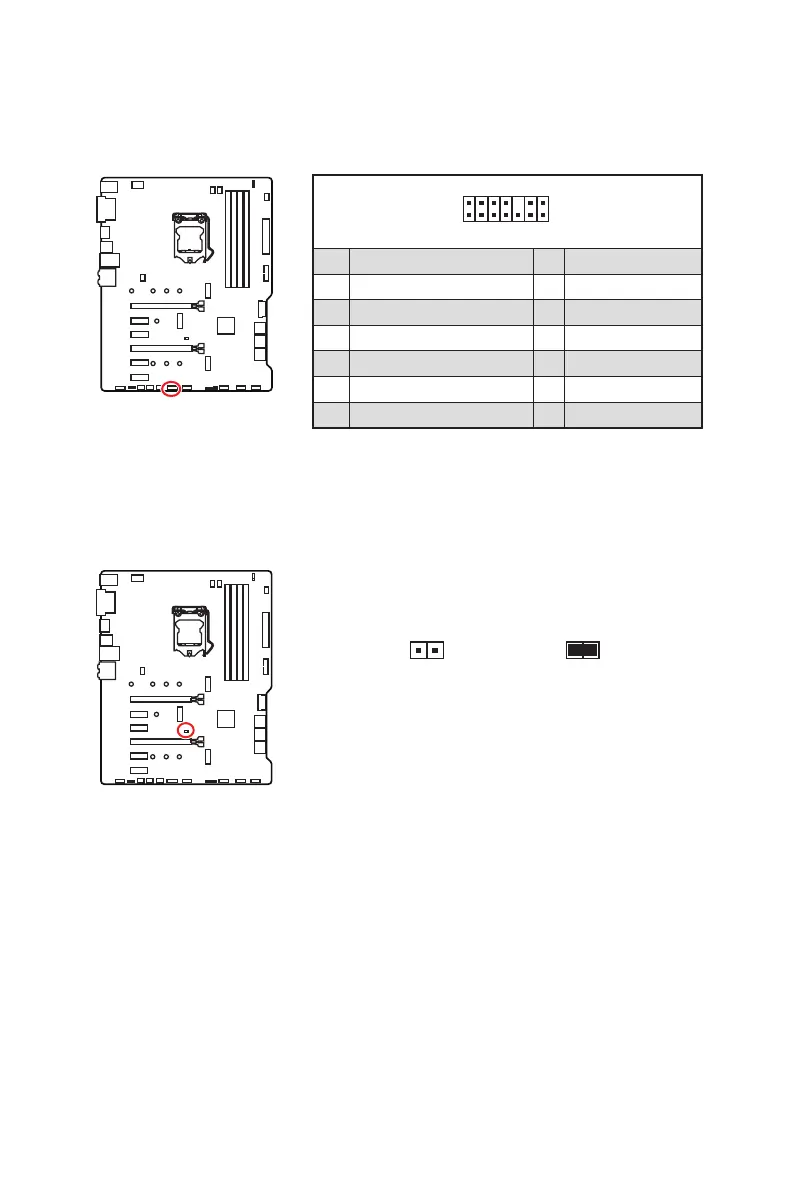

JBAT1: Clear CMOS (Reset BIOS) Jumper
There is CMOS memory onboard that is external powered from a battery located on
the motherboard to save system configuration data. If you want to clear the system
configuration, set the jumpers to clear the CMOS memory.
Daten
beibehalten
(Standardwert)
CMOS-Daten
löschen/ Reset
des BIOS
Rücksetzen des BIOS auf Standardwerte
1. Schalten Sie den Computer ab und ziehen Sie das Netzkabel ab.
2. Verwenden Sie eine Steckbrücke, um JBAT1 für 5-10 Sekunden kurzzuschließen.
3. Entfernen Sie die Steckbrücke von JBAT1.
4. Stecken Sie das Kabel Ihres Computers in die Steckdose hinein und schalten Sie
den Computer ein.
1
2 14
13
1 LPC Clock 2 3V Standby power
3 LPC Reset 4 3.3V Power
5 LPC address & data pin0 6 Serial IRQ
7 LPC address & data pin1 8 5V Power
9 LPC address & data pin2 10 No Pin
11 LPC address & data pin3 12 Ground
13 LPC Frame 14 Ground
JTPM1: TPM Anschluss
Dieser Anschluss wird für das TPM Modul (Trusted Platform Module) verwendet.
Weitere Informationen über den Einsatz des optionalen TPM Modules entnehmen Sie
bitte dem TPM Plattform Handbuch.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI MPG GAMING PLUS Z390 and is the answer not in the manual?

MSI MPG GAMING PLUS Z390 Specifications

General IconGeneral
ChipsetIntel Z390
Form FactorATX
Memory Slots4
Maximum Memory64 GB
Memory TypeDDR4
PCIe x16 Slots2
PCIe x1 Slots4
SATA Ports6
M.2 Slots2
USB 3.1 Gen2 Type-A Ports1
USB 3.1 Gen2 Type-C Ports1
USB 3.1 Gen1 Ports4
USB 2.0 Ports6
AudioRealtek ALC892
LANIntel I219-V
CPU SocketLGA 1151
RAID Support0, 1, 5, 10
