MSI MS-5148 - Power Supply Connection; ATX 20-pin Power Connector (JWR12)

CHAPTER 2 HARDWARE INSTALLATION
2-24
2.12 Power Supply
2.12-1 ATX 20-pin Power Connector: JWR12
This connector support the power button on board soft power off and
modem ring wakeup. you neeed to use the push button JRMS1 and
JRMS2.
10..................................1
20................................11
5V 5V -5V
5V5V
3.3V-12V
12V
5V_SB
3.3V
3.3V
GND GND
GND
GND
GNDGND
GND
PW_Ok
PS_ON
1
23
456
7
8
9
10
11
1213
14
15
16
1718
19
20

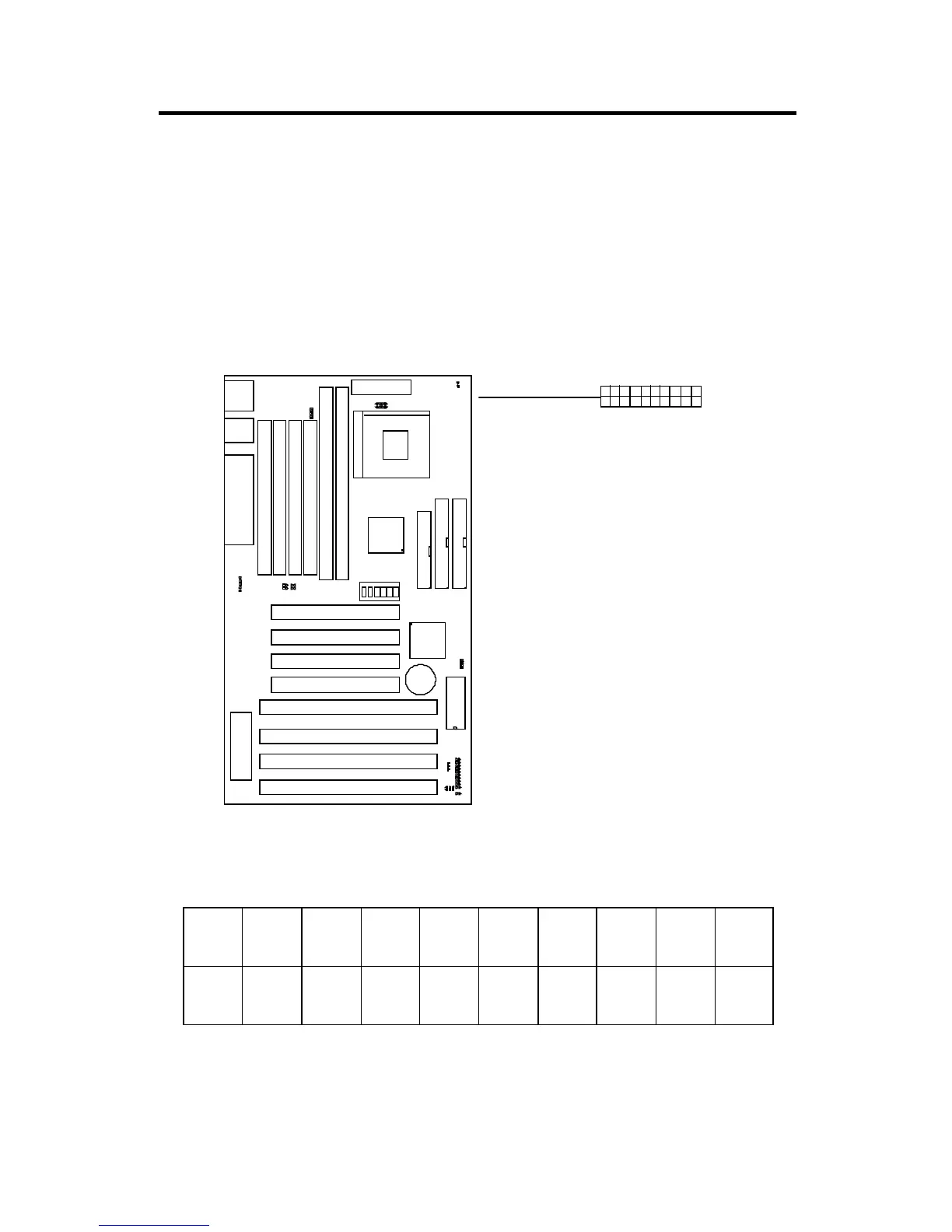

ATX Power Connector Pin Description
ATX
Power Connector
