CHAPTER 2 HARDWARE INSTALLATION
2-26
2.13 Keyboard Connector: PSKBC
Mouse Connector: PSMSC
The system board provides a standard PS/2 style keyboard mini DIN
connector for attaching a keyboard. You can plug a keyboard cable directly
to this connector.
It also provides a standard PS/2 style mouse mini DIN connector for attach-
ing a PS/2 style mouse. You can plug a PS/2 style mouse directly into this

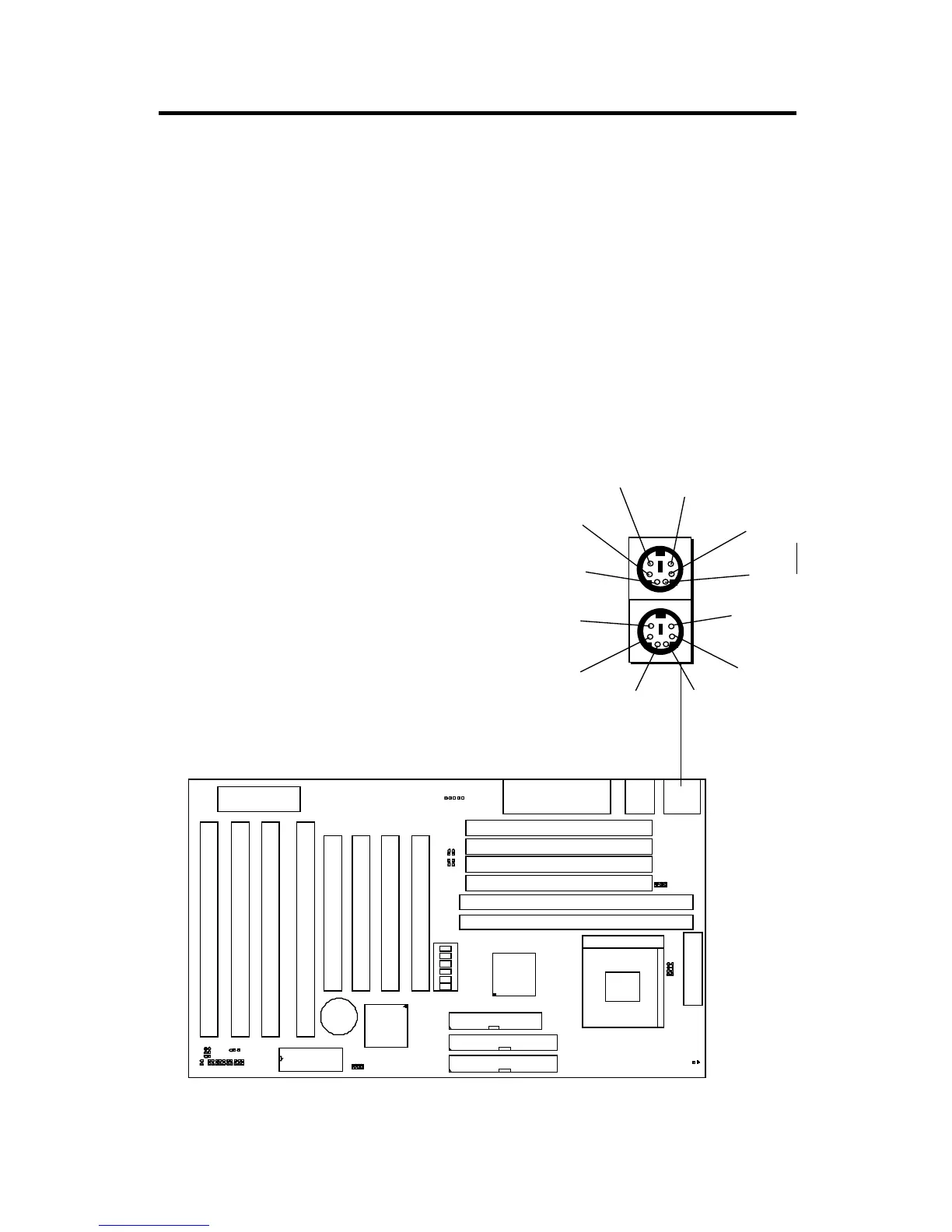

connector. The connector location and pin definition as shown below:
