MSI MS-7143 - Layout

1
Introduction
Thank you for choosing the 915PL/ P Neo (MS-7143 v2.X) Series ATX mainboard. The 915PL/ P
Neo Series is based on Intel 915PL/ 915P & Intel ICH6 chipsets for optimal system efficiency.
Designed to fit the advanced Intel
®
P4 Prescott 533/ 800MHz processors in LGA775 package,
the 915PL/ P Neo Series delivers a high performance and professional desktop platform solution.

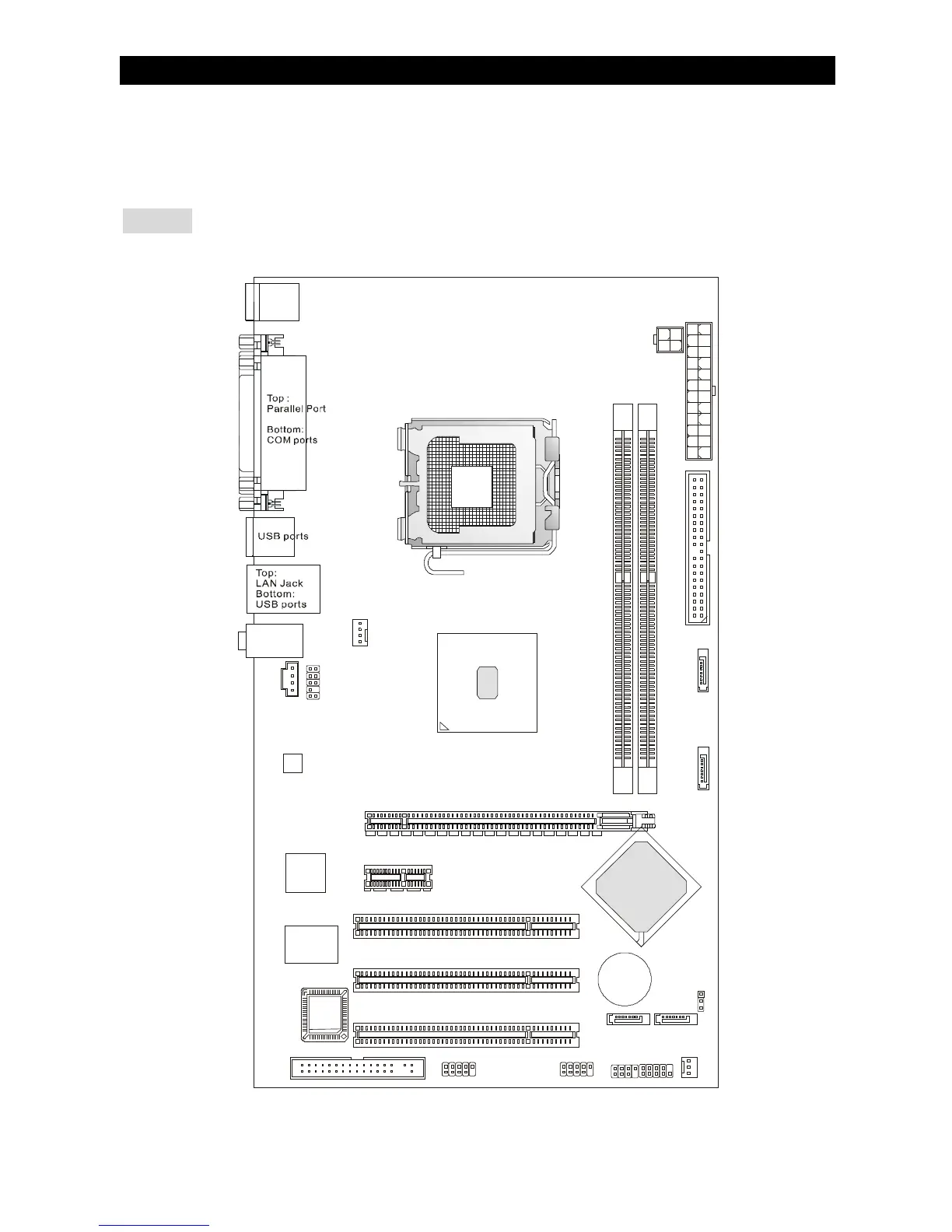

Layout
D
I
M
M
2
D
I
M
M
1
T: mouse
B: keyboard
T:
Line-Out
B:Mic
Line-In
M:
JAUD1
CD1
Codec
LAN
Chip
ICH6
I
n
t
e
l
9
1
5
P
L
/
9
1
5
P
IDE1
PCI Slot 1
PCI _E1
PCI _E2
PCI Slot 3
PCI Slot 2
CPUFAN1
SYSFAN1
JPW1
ATX1
JFP2 JFP1
JUSB1
JUSB2
JBAT1
SATA4
SATA1
SATA2
SATA3
BATT
+
Winbond
W83627THF
FDD1
BIOS
