MSI MS-7520 ECLIPSE Series User Manual

A-6
MS-7520 Mainboard

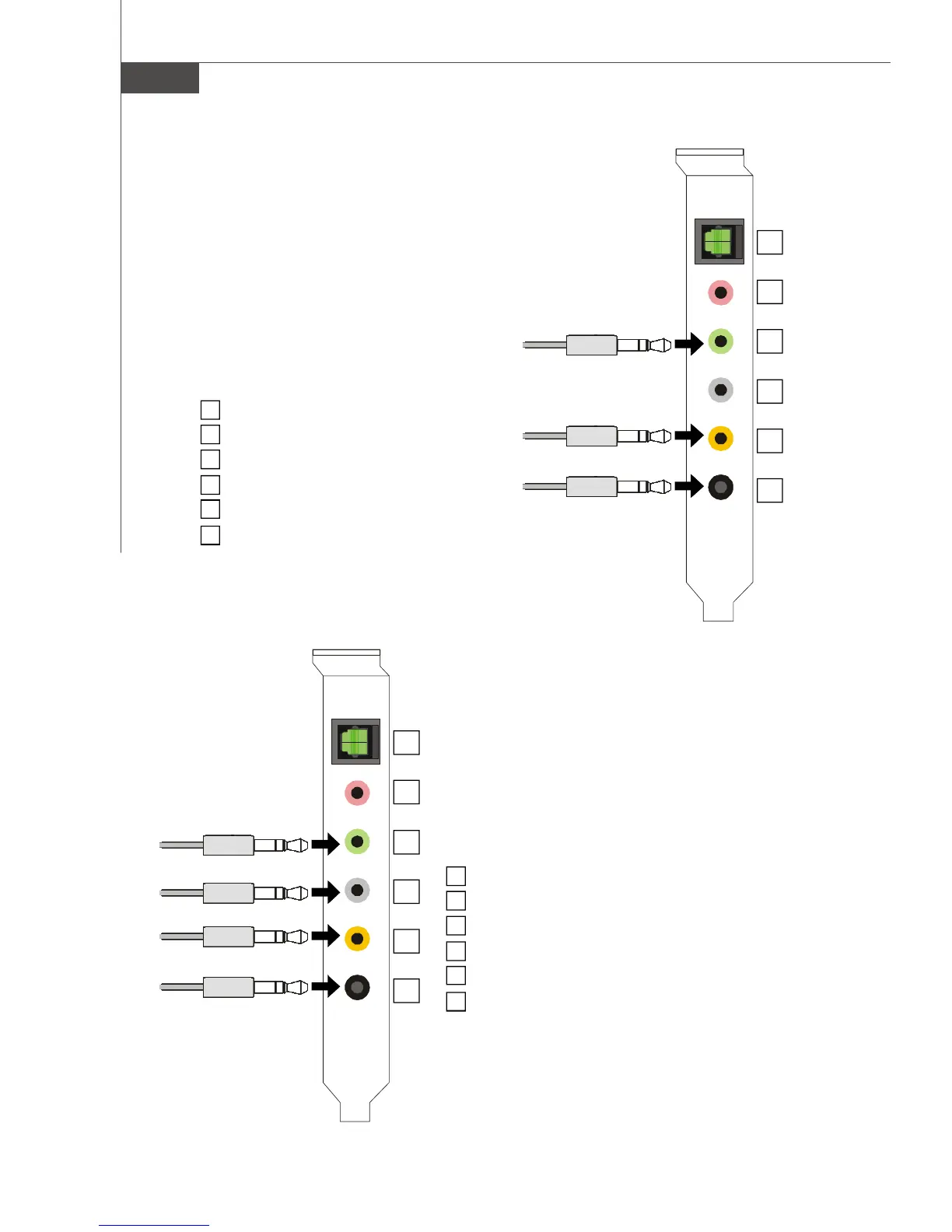

8-Channel Analog Audio Output
1 S/PDIF Out-Optical
2 MIC & Line-In
3 Line Out (Front channels)
4 Line Out (Side channels)
5 Line Out (Center and Subwoofer channel)
6 Line Out (Rear channels)
3
1
2
6
4
5
n 8-Channel Mode for 8-Speaker Output
Refer to the diagram and caption for the function
of each jack on the back panel when 8-Channel
Mode is selected.
6-Channel Analog Audio Output
1 S/PDIF Out-Optical
2 MIC & Line-In
3 Line Out (Front channels)
4 No function
5 Line Out (Center and Subwoofer channel)
6 Line Out (Rear channels)
3
1
2
6
4
5
n 6-Channel Mode for 6-Speaker Output
Refer to the diagram and caption for the function
of each jack on the back panel when 6-Channel
Mode is selected.
