SATA3_1, SATA1~4: SATA 3.0 6Gb/s Ports
These connectors are SATA 6Gb/s interface ports, it can connect to SATA devices.
⚠
Important
∙
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
∙
SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.

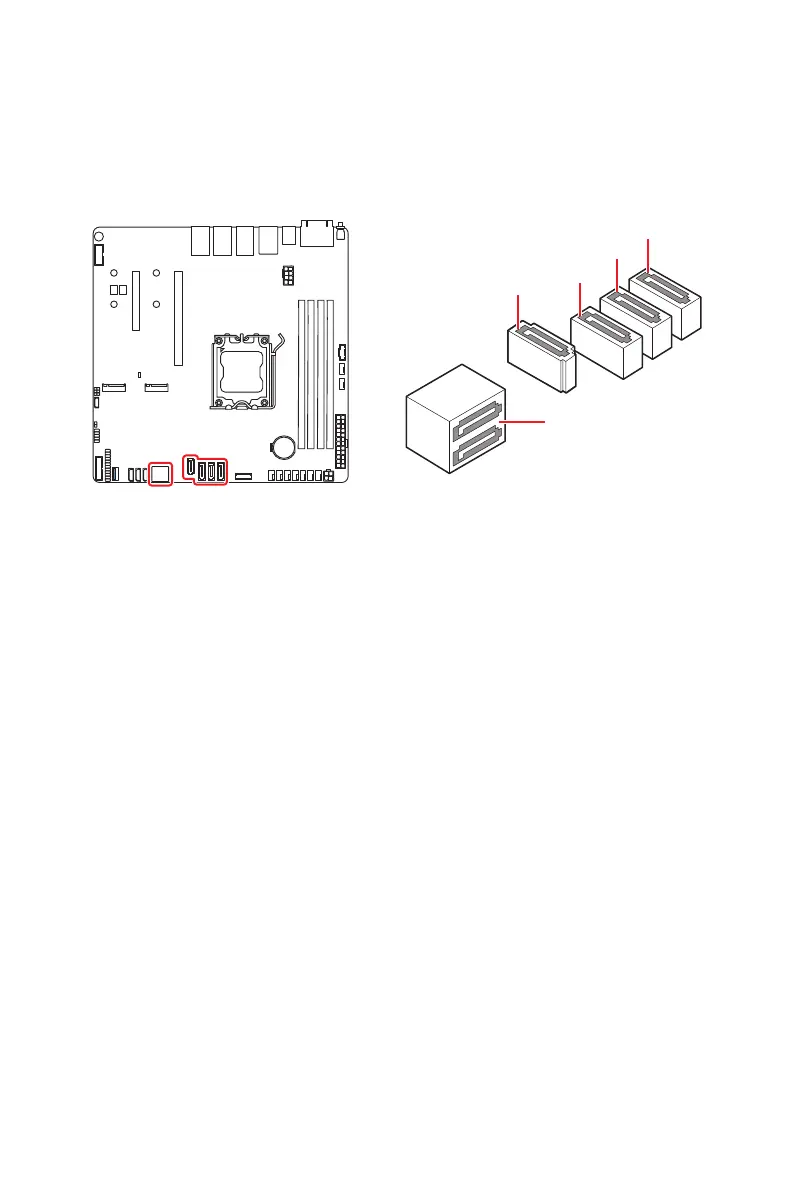

SATA1
SATA2
SATA3
SATA4
SATA3_1
