MSI MS-S3361 - Connectors; Power Connectors; SATAPWR1: SATA Power Connector; JPWR1: 12 V Power Connector

20

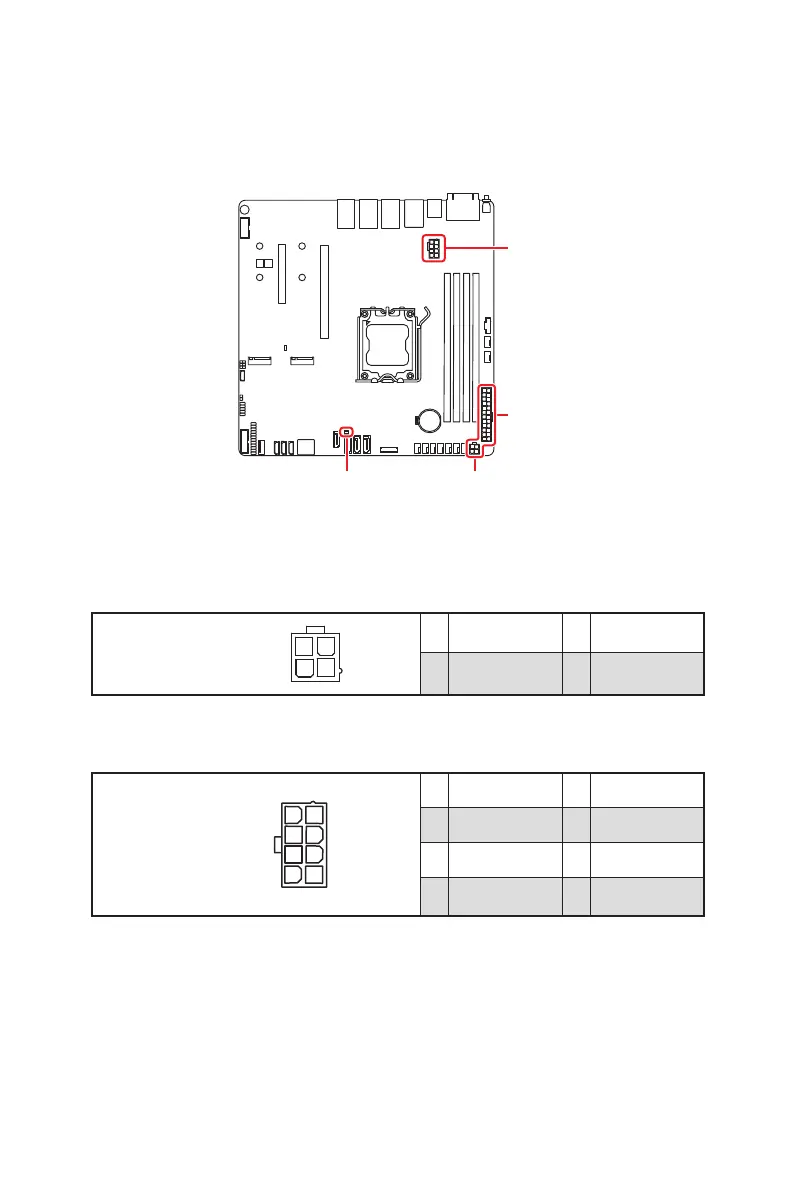

Connectors
Connectors
Power Connectors
JPWR1
JPWR2
SATAPWR1JSDOMPWR1
SATAPWR1: SATA Power Connector
This connector is used to provide power to SATA devices.
SATAPWR1
3
4
2
1
1 GND 2 GND
3
P12V
4
P5V
JPWR1: 12V Power Connector
This connector allows you to connect an ATX power supply.
1
48
5
JPWR1
1 GND 2 GND
3 GND 4 GND
5 P12V 6 P12V
7 P12V 8 P12V
