MSI MS-S3361 - JTPM1: SPI TPM Module Box Header

24
Connectors

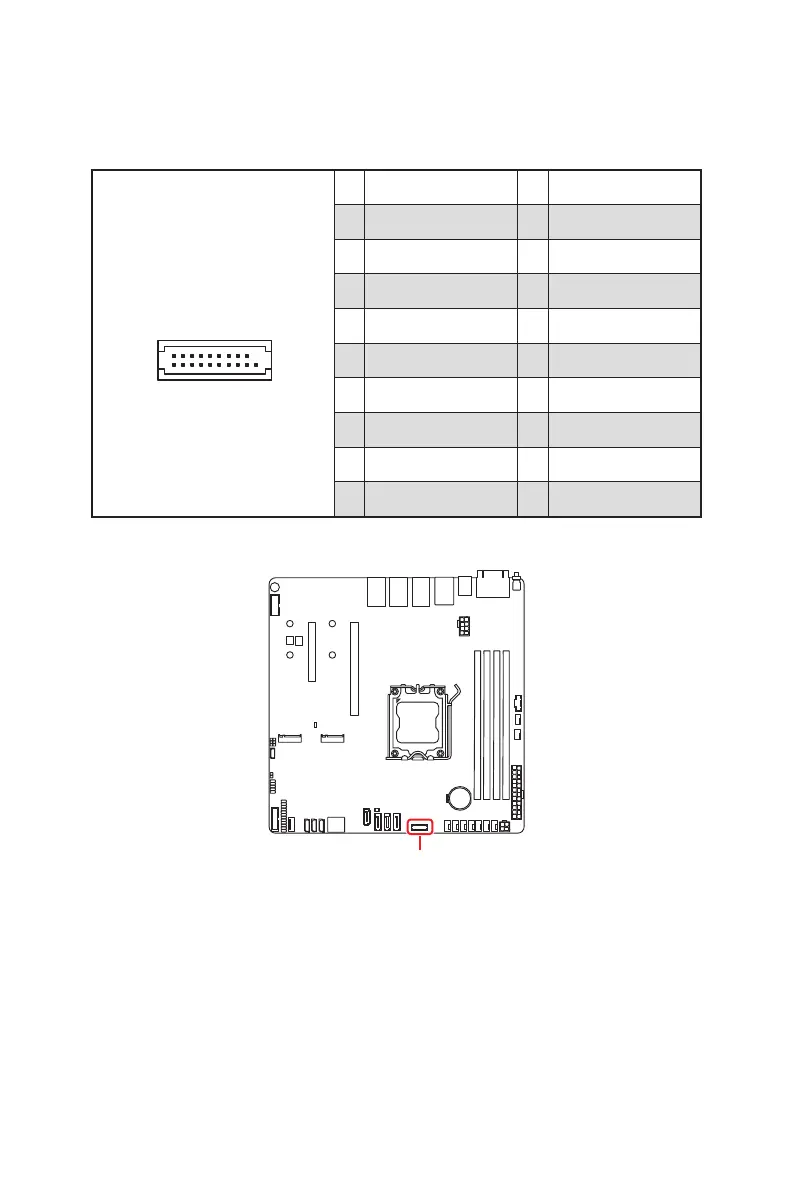

JTPM1: SPI TPM Module Box Header
This connector connects to a TPM (Trusted Platform Module) (optional). Please refer
to the TPM security platform manual for more details.
JTPM1
2
3
19
20
1
N/A
2
SPI_LOC_ROM_CS_N
3
CPU_RSMEST_L
4
N/A
5
GND
6
PVDD_P1V8_AUX
7 SPI_LOC_ROM_CLK 8 SPI_CPU0_WP_L
9 SPI_CPU0_HOLD_L 10 SPI_LOC_ROM_MISO
11
N/A
12 SPI_LOC_ROM_MOSI
13 CPU_SPI_TPM_CS_N 14
GND
15
PVDD_P1V8_AUX
16
GND
17
CPU_TPM_SPI_IRQ_N
18
PVDD_P1V8_AUX
19 TPM_RESET_N 20
PVDD_P1V8_AUX
JTPM1
