MSI MS-S3361 - JUSB1: USB 3.2 Port Box Header; JUSB2: USB 2.0 Type-A Connector

27
Connectors

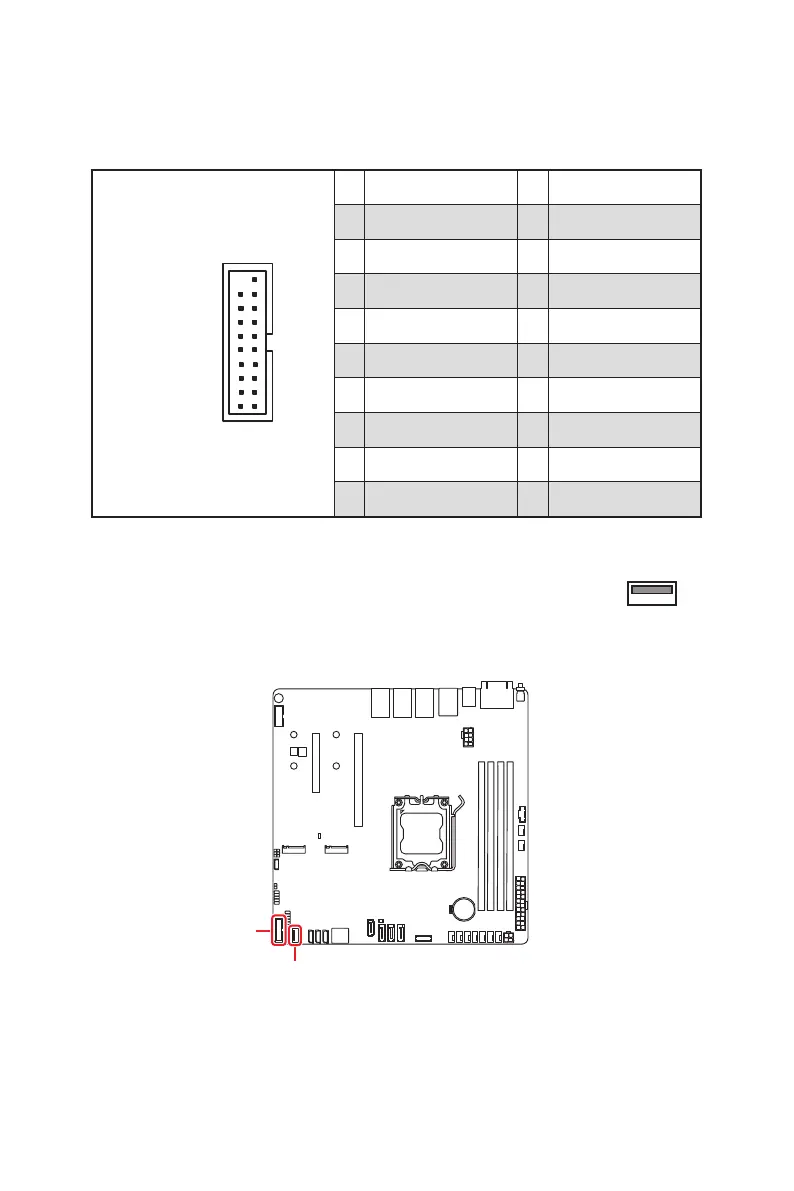

JUSB1: USB 3.2 Port Box Header
This port is backward-compatible with USB 2.0 devices and supports data transfer
rate up to 5 Gbit/s (SuperSpeed).
1
10
11
20
JUSB1
1
USB_VCC1
2
USB3_ESD_RX4N
3
USB3_ESD_RX4P
4
GND
5
USB3_ESD_TX4N
6
USB3_ESD_RX4P
7
GND
8
USB3_ESD_DN8
9
USB3_ESD_DP8
10
NC
11
USB2_ESD_DP9
12
USB2_ESD_DN9
13 GND 14
USB3_ESD_TX5P
15
USB3_ESD_TX5N
16
GND
17
USB3_ESD_RX5P
18
USB3_ESD_RX5N
19
USB_VCC2
20
No Pin
JUSB2: USB 2.0 Type-A Connector
The USB (Universal Serial Bus) port is for attaching USB devices such
as keyboard, mouse, or other USB-compatible devices. It supports up to
480Mbit/s (Hi-Speed) data transfer rate.
JUSB1
JUSB2
JUSB2
