MSI MS-S3361 - Onboard Leds; BMC_LED1: BMC Heartbeat LED; LED_H1, LED_L1: Port 80 Debug Leds

30

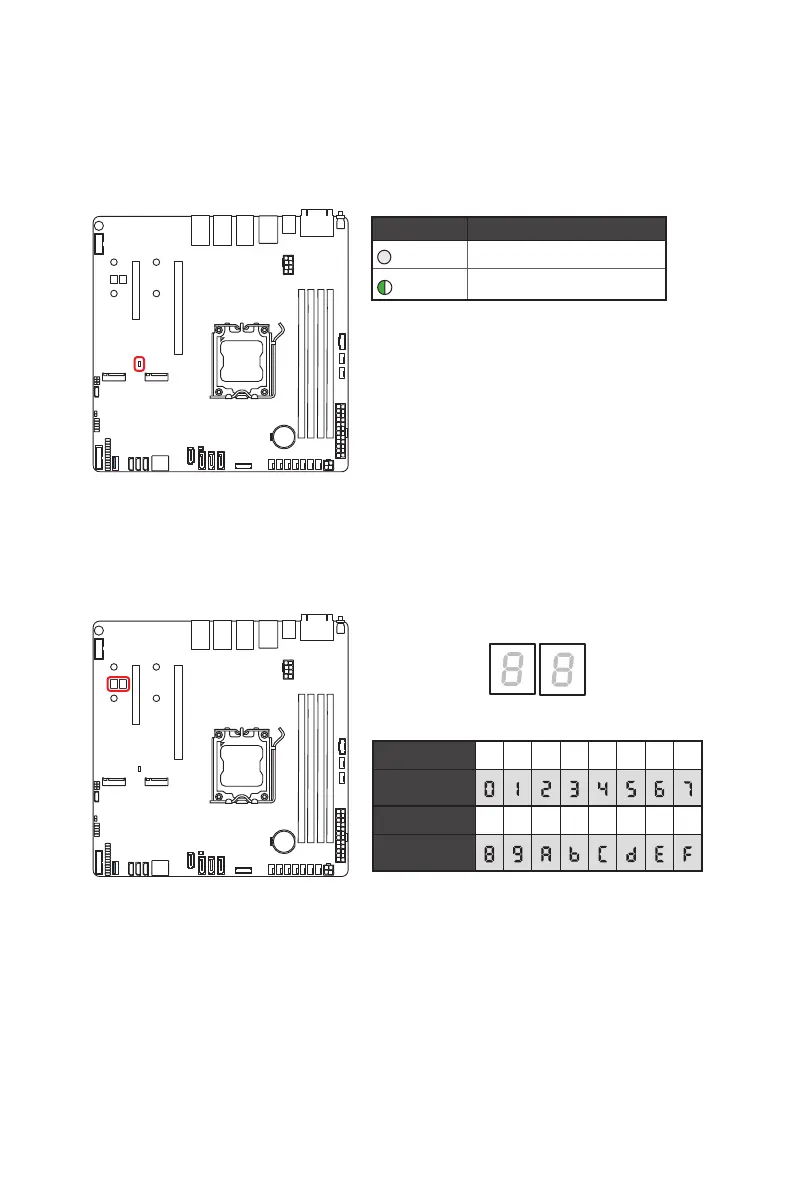

Onboard LEDs
Onboard LEDs
BMC_LED1: BMC Heartbeat LED
This LED indicates the BMC (Baseboard Management Controller) status.
Status Description
Off
BMC is not activated
Blinking
BMC is functioning normally
LED_H1, LED_L1: Port 80 Debug LEDs
The Port 80 Debug LEDs display progress and error codes during and after POST
(Power-On Self Test).
Hexadecimal Character Table
Hexadecimal
0 1 2 3 4 5 6 7
LED display
Hexadecimal
8 9 A B C D E F
LED display
