MTA NGSi 07 - Mod. Ngsi 07; Mod. Ngsi 10; Mod. Ngsi 15

TECHNICAL MANUAL
Chapter 15 - Heat pump working heads
NGSi 05÷15
43
ENGLISH
EN
The data in this manual are not binding and they can be modified by the manufacturer without notice. Reproduction of this manual is strictly prohibited

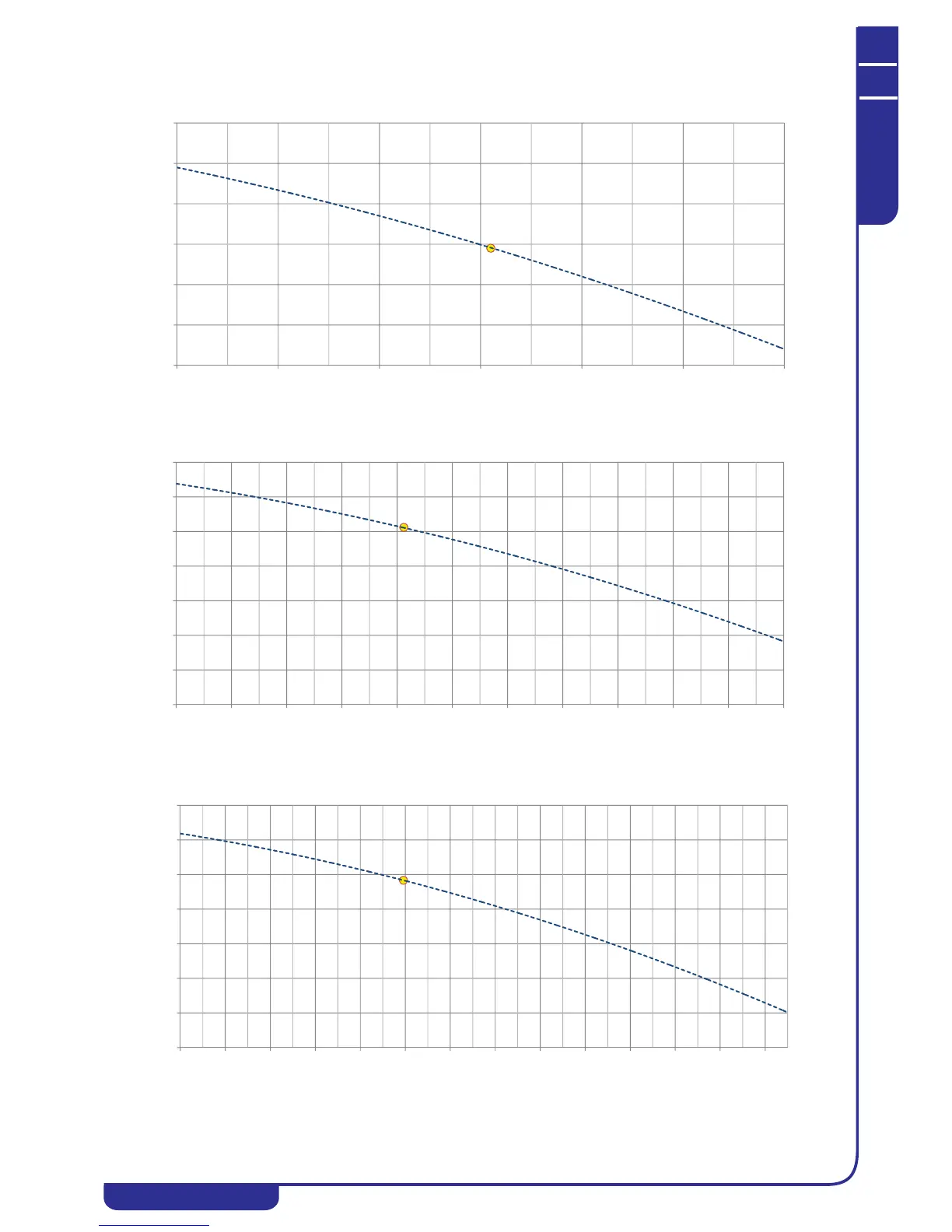

15.2 Mod. NGSi 07
15.3 Mod. NGSi 10
15.4 Mod. NGSi 15
0
10
20
30
40
50
60
1,0 1,2 1,4 1,8 2,0 2,2
1,6
Work head [kPa]
Flow rate [m3/h]
0
10
20
30
40
50
60
70
1,3 1,5 1,7 1,9 2,1 2,3 2,5 2,7 2,9 3,1 3,3 3,5
Work head [kPa]
Flow rate [m3/h]
0
10
20
30
40
50
60
70
1,6 1,8 2,0 2,2 2,4 2,6 2,8 3,0 3,2 3,4 3,6 3,8 4,0 4,2
Work head [kPa]
Flow rate [m3/h]
