TECHNICAL MANUAL

Chapter 19 - Electric wiring diagrams

NGSi 05÷15

ENGLISH

The data in this manual are not binding and they can be modified by the manufacturer without notice. Reproduction of this manual is strictly prohibited

CHAPTER 19

ELECTRIC WIRING DIAGRAMS

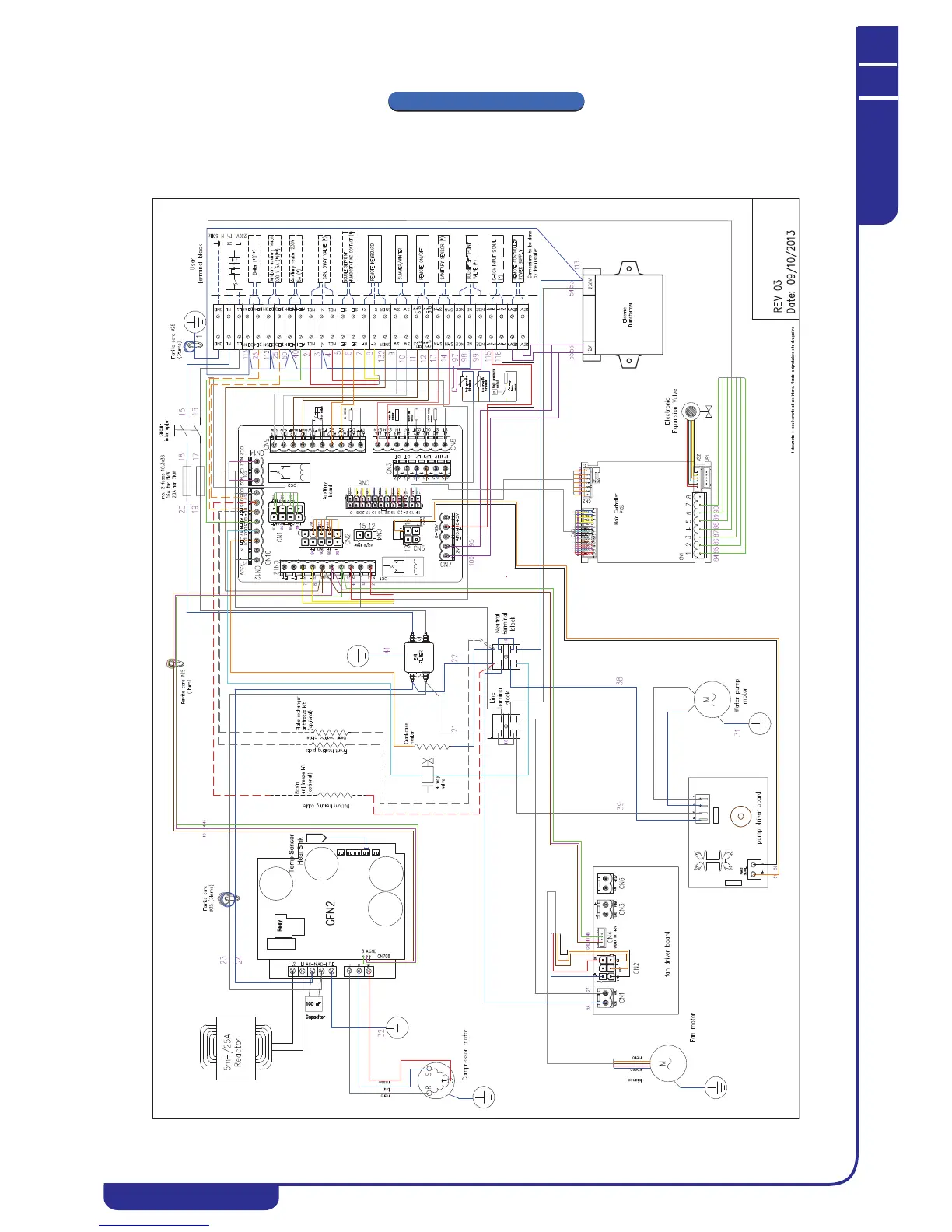

19.1 Mod. NGSi 05-07

(*) It is necessary to setting the correct parameters. Possible other resource configurations.

(**) Digital outputs are not available if it is present AK version.
