MTD 1332G - 1332 G, 1336 G; Caster Assembly

13

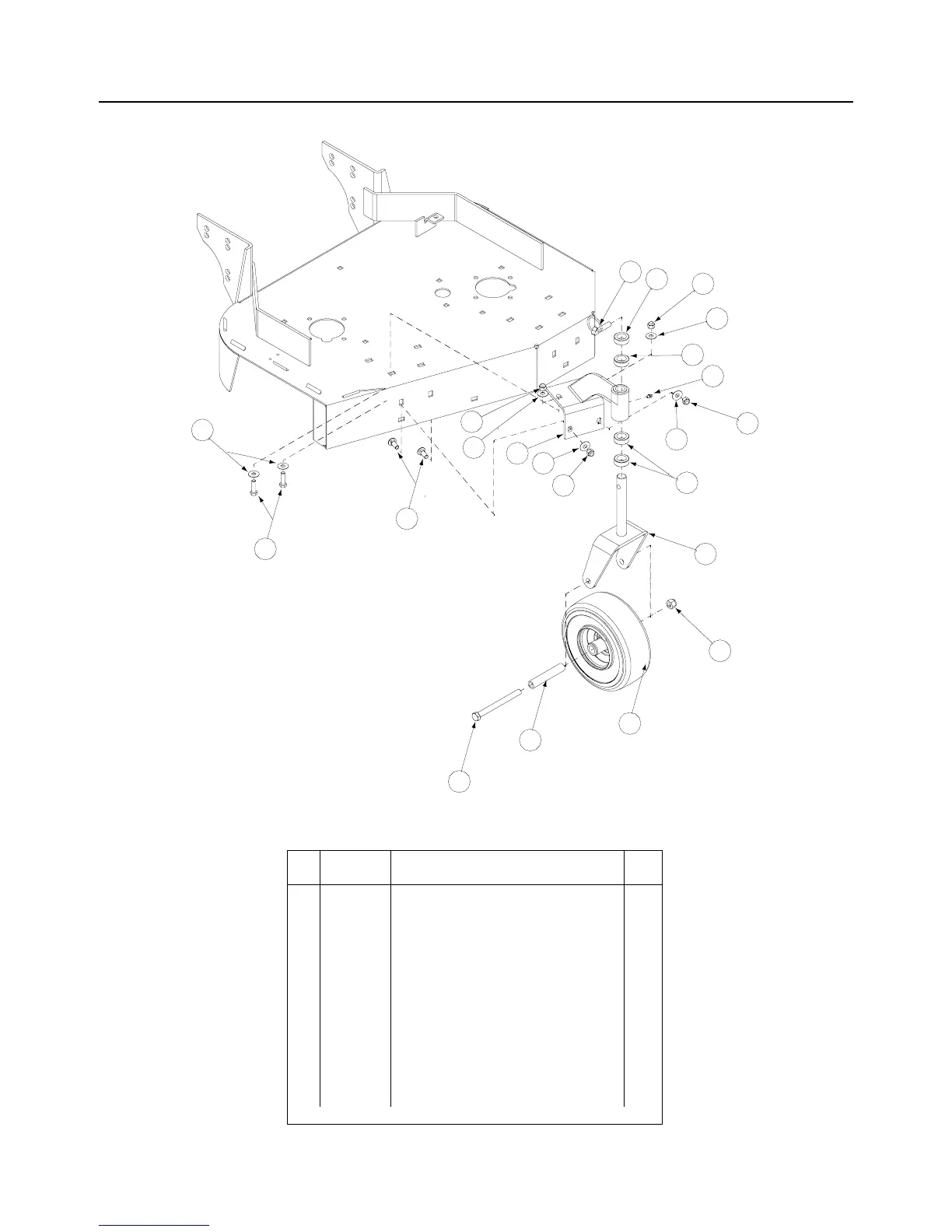

1332G, 1336G / Caster Assembly
- Figure 9 & Parts List
Ref.
No. Part No. Description Qty.
1 00011444 Hex Cap Screw, 3/8-16 x 1-1/4 2
2 00012158 Flat Washer, 3/8 Zinc 6
3 00012173 Lock Nut, Nylon Insert, 3/8-16 4
4 00012428 Lock Nut, Nylon Insert, 1/2-13 1
5 00012675 Hex Cap Screw, 1/2-20, 5.50 1
6 00014528 Spacer Wheel 1
7 00021863 Klik Pin, 1.75 1
801001059Caster Bracket Weldment1
9 00021925 Spacer, Caster 4
10 00024155 Wheel Assembly, 9.0 x 3.50-4 1
11 00060078 Grease Fitting, 1/4-28 x 3/16 1
12 01000643 Carriage Bolt, 3/8-16 x 2 2
13 01001052 Caster Yoke Assembly, Weldment 1
Note: Lubricant Grease by Ounce
2
1
12
6
10
4
13
9
11
2
3
9
7
9
3
5
2
3
2
2
3
8
