15

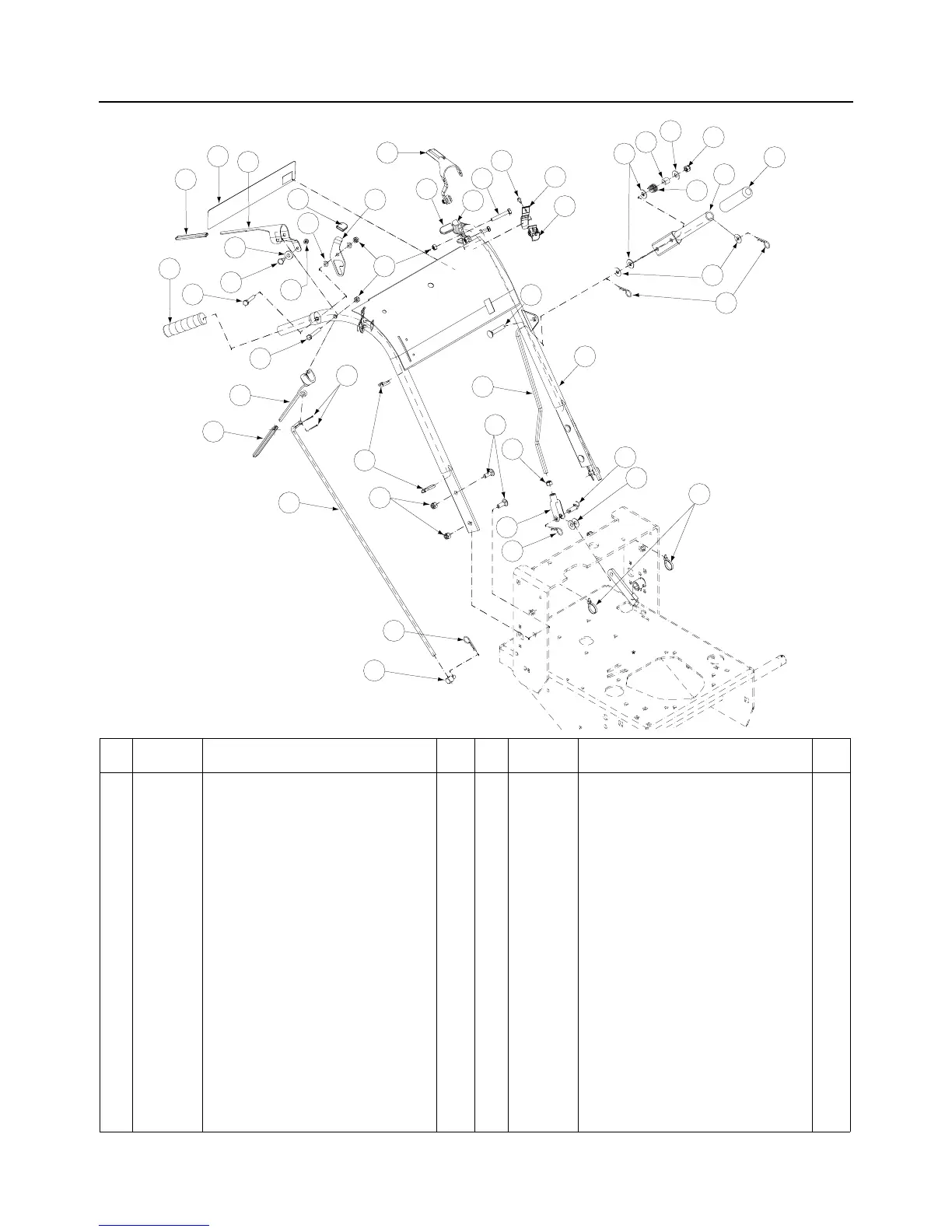

1332G, 1336G / Handle Assembly
- Figure 11 & Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00006131 Hex Nut, 3/8-16 1 22 00030378 Plastic Handle Grip, Black, 4-5/8 2
2 00006168 Flat Washer, 3/8 Zinc 3 23 00071691 Control Rod, Hydro Spacer 2
3 00009678 Clevis Pin, 3/8 x 1-1/8 Zinc 1 24 00071879 Hydro Blade Clutch Rod Base 1
4 00011211 Grip, Neutral Latch, 1.25" 2 25 00076730 Spring Sleeve 1
5 00012158 Flat Washer, 3/8 Zinc 4 26 01000643 Carriage Bolt, 3/8-16 x 2 4
600012165Nylock Nut, 5/16-1842701001558Handle Assembly1
7 00012169 Flat Washer, 5/16 Zinc 4 28 01001699 Operator Presence Control RH 1
8 00012173 Lock Nut, Nylon Insert, 3/8-16 5 29 01001700 Operator Presence Control LH 1
9 00012204 Cotter Pin, 3/32 x 3/4, Zinc 4 30 01001714 Control Sleeve, Black 2
10 00012470 Cable Tie, 3/16 x .05 x 7.4 4 31 01001715 Operator Control Sleeve, Yellow 2
11 00013198 Hex Cap Screw, 5/16-18 x 2 2 32 01001716
Harness Assembly Adapter (not show)
1
12 00014081 Lock Nut, Nylon Insert 2 33 01001717 Switch Mounting Snap 2
13 00014270 Carriage Bolt, 3/8-16 x 2 1 34 01001863 Operator Presence Return Spring 2
14 00021797 Spring, .850 OD x 1 1 35 01001864 Hex Index Washer Screw, 0.500 2
15 00021858
Neutral Latch, Left Hand
1 36 01001919 Shoulder Screw, .38 x .412, 1/4-28 2
16 00021910 Neutral Latch, Right Hand 1 37 01001972 Hex Cap Screw, 5/16-18, 2.00 2
17 00021927 Steering Control Rod 2 38 01003210 Blade Clutch Lever 1
18 00021943 Joint Swivel 2 39 01001561 Lever Assembly Control 2
1900021955Yoke, 3/8-16 Female1 ------
20 00021956 Hair Pin 3/8-1/2 5 41 01001724 Label Commercial Mower Instruction 1
21 00022223 Handle Grip, Black, 1" 1
41
31
28
4
12
36
23
37
11
39
8
30
17
24
26
10
5
3
20
18
20
19
1
7
16
9
10
4
35
29
25
2
2
11
15
6
27
34
33
8
14
38
21
20
5
13
22
