MTD 1332G - 1332 G; Brake Assembly Narrow Track

19

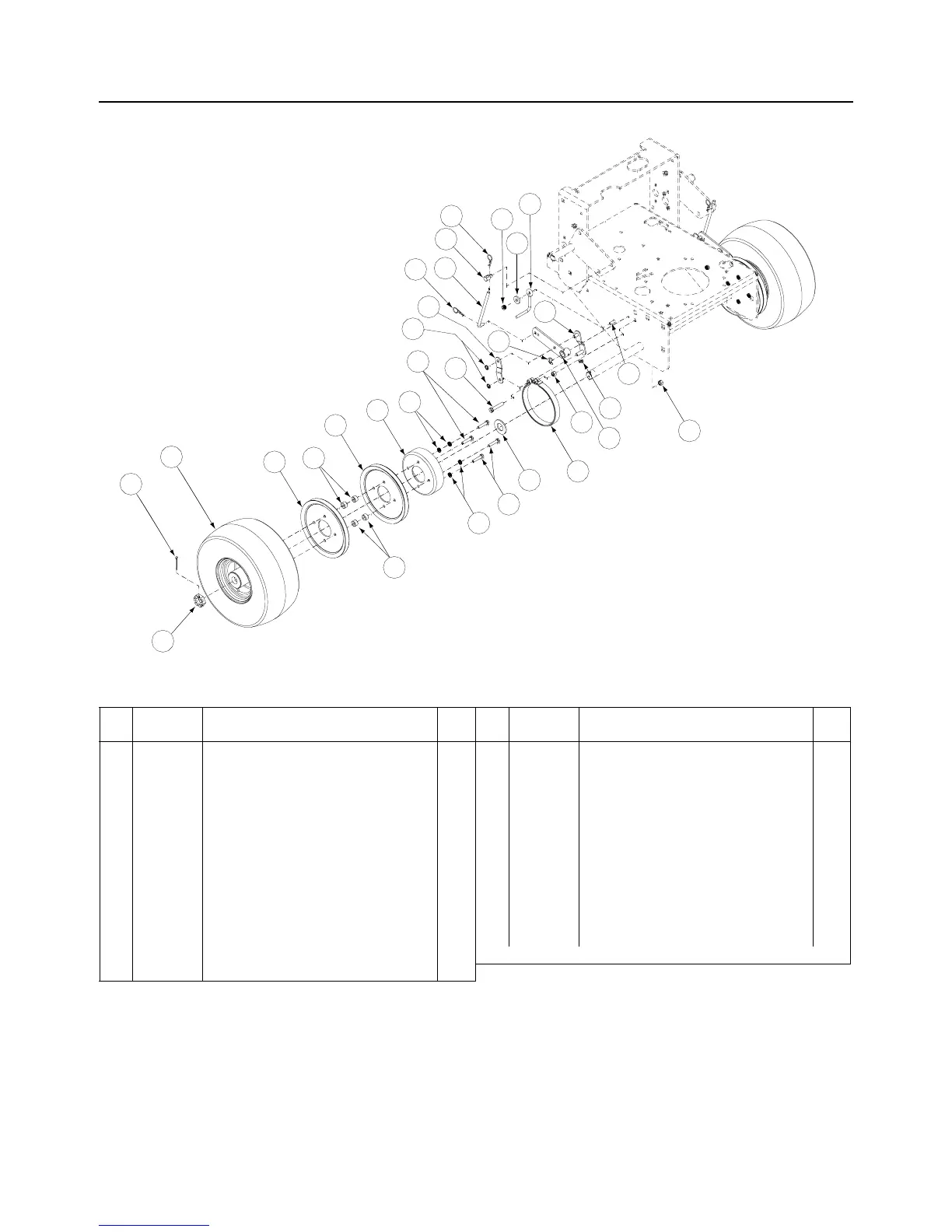

1332G / Brake Assembly Narrow Track
- Figure 15 & Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00002528 Hex Cap Screw, 3/8-16, 2.00 2 15 00021960
Retainer, Push ON, 3/8 4
2 00006131 Hex Nut, 3/8-16 4 16 00021962 E-Ring, 5/8 2
3 00010869 Flat Washer, 2.000 x 1.005 x .120 2 17 00021979 Drive Pulley, V 4
4 00012165 Nut, Nylock, 5/16-18 2 18 00021980 Drum Brake 2
5 00012168 Lock Washer, 5/16 Zinc 8 19 00021981 Band Brake 2
600012226Grease Fitting, 1/4-28, 90°22000021984Wheel Assembly, 13 x 5.00-62
700012380Cotter Pin, 5/32 x 1-1/2 Zinc22100021983Hex Jam Nut, 1-142
8 00012382 Hex Cap Screw, 5/16-18 x 1-1/2 8 22 00021933 Brake Link 2
9 00021930 Brake Rod 2 23 00083192 Idler Washer 2
10 00021931 Drive Belt Guide 2 24 01000641 Carriage Bolt, 5/16-18 x 1 2
11 00067444 Brake, Bracket Link 2 25 -- -- --
12 00021941 Drive Wheel Pulley Spacer 8 26 00021900 Brake Lever Weldment 2
1300021943Swivel Joint2
14 00021956 Hair Pin, 3/8-1/2 4
7
20
17
17
18
5
8
1
15
11
16
14
9
13
14
4
10
23
12
12
5
8
3
19
2
2
24
6
22
26
21
