21

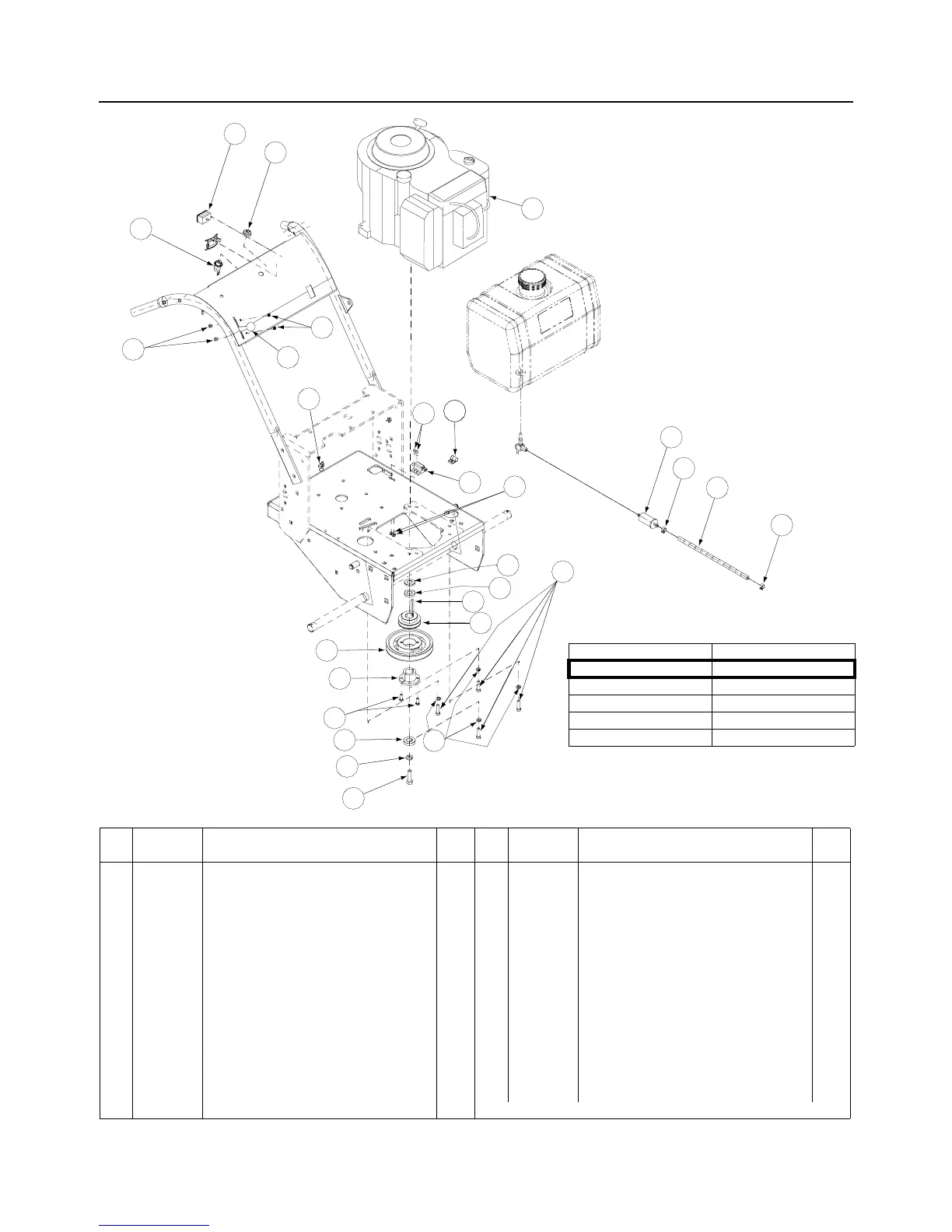

1332G, 1336G / 13HP Kohler Engine Assembly
- Figure 17 & Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00010943 Single Ignition ON/OFF Switch 1 16 00021973 Bushing 1
2 01001811 Harness Hour Meter (not shown) 1 17 00030906 Machine Screw, 10-32 x 5/8 2
3 00012168 Lock Washer, 5/16 4 18 00031081 Support Clamp Tubing, 1/2" 1
4 00012235 Clamp 2 19 00032097 Nut w/cap, 5/8-32 Ignition 1
5 00012292 Kohler Fuel Filter 1 20 01000992 13HP Kohler Engine 1
6 01002229 Harness Adapter, (not shown) 1 21 00060807 Support Clamp, 3/8 OD 1
7 00013669 Screw, Hex Washer, 10-32 x 1/2 2 22 01000194 Belt (not shown) 1
8 00014542 Cap Screw, 1.25 x 30 4 23 00072586 Flat Washer 1
9 00014608 Lock Nut, Nylon Insert, 10-32 4 24 -- -- --
10 00018324 Delta Switch 1 25 01005389 Hour Meter 1
11 00019550 Control Throttle w/Detent, 39.2 1 26 00012195 Lock Washer, 7/16 1
12 00014599 Key Stick, 1/4 x 1/4 x 2-1/4 1 27 00013675 Clutch Washer 1
13 00021521
Harness Wire (not shown)
1 28 01002884 Hex Cap Screw, 7/16-20 x 1.25 Lg 1
14 00021970 Deck Pulley 1 29 00073094 Spacer, Engine Pulley 1
15 00021972 Traction Pulley 1 Note: Engine Oil 10w40
24
4
4
5
8
19
7
11
25
1
9
18
10
18
17
20
15
14
16
27
26
28
6
3
12
23
29
9
21
Description Part Number
Engine 01000992
Air Filter --
Pre Cleaner --
Oil Filter --
Spark Plug --
