MTD 1332G - 1336 G; 36 Spindle Assembly

12

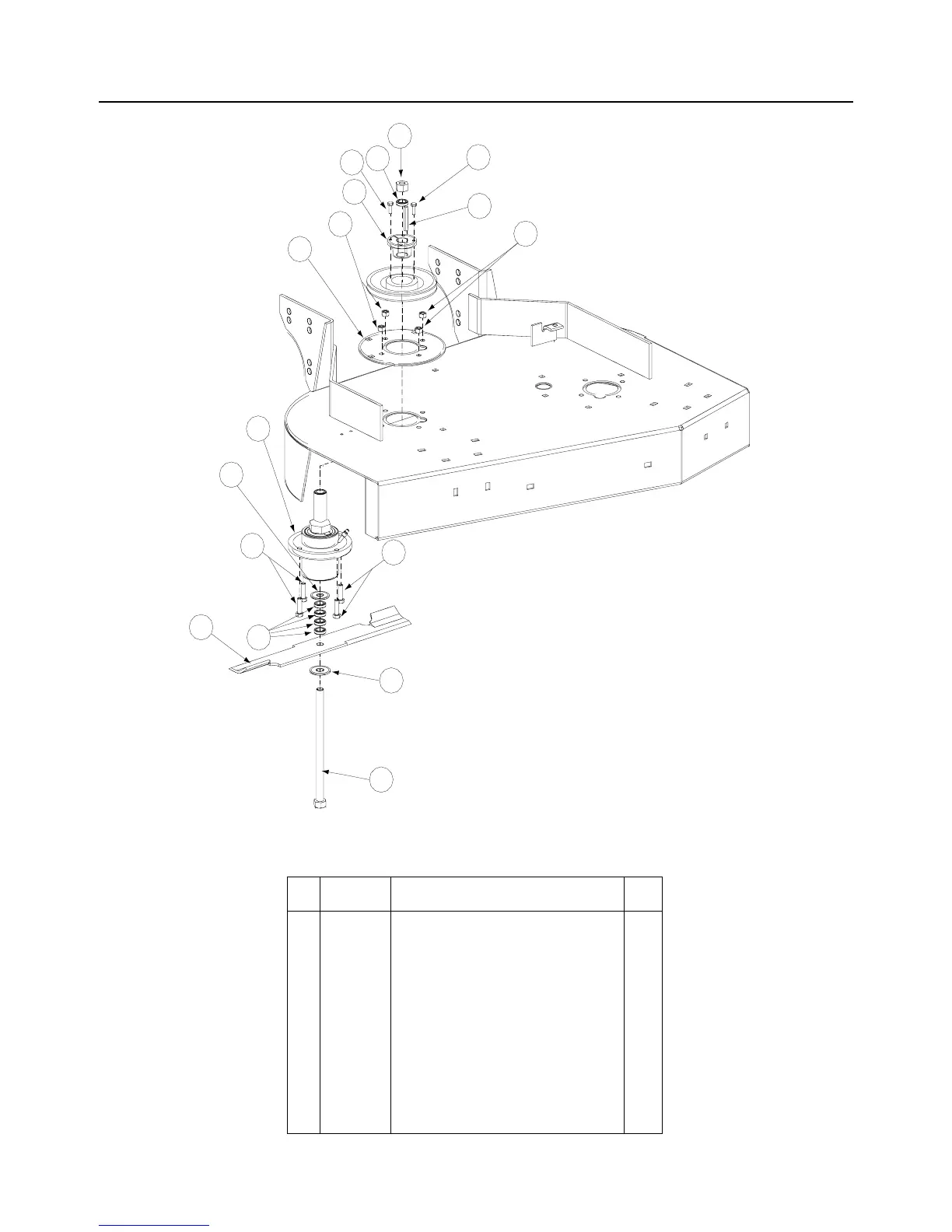

1336G / 36" Spindle Assembly
- Figure 8 & Parts List
Ref.
No. Part No. Description Qty.
1 00002766 Flat Washer, 1-1/2 x 5/8 x .05 1
2 00011444 Hex Cap Screw, 3/8-16 x 1-1/4 4
3 00011807 Hex Nut, 5/8-11 1
4 00013091 Hex Cap Screw, 5/8-11 x 9-1/2 1
5 00013131 Hex Cap Screw, 1/4-20, .75 2
6 00013432 Flat Washer, 5/8 Zinc 1
7 00021517 Key Stick, 1/4 x 1/4 x 2 1
8 00021924 Blade Spacer, 5/8 ID, 1/4 Thick 5
9 00021973 Bushing 1
10 00034224 Lock Nut, 3/8-16 4
11 00050125 Blade 18" 1
12 00057412 Spindle Assembly 1
13 01003231 Plate, Spindle Backing 1
13
12
2
2
11
8
6
4
1
10
9
5
8
3
7
5
10
