MTD 1332G - 1332 G, 1336 G; Tank Assembly

14
1332G, 1336G / Tank Assembly

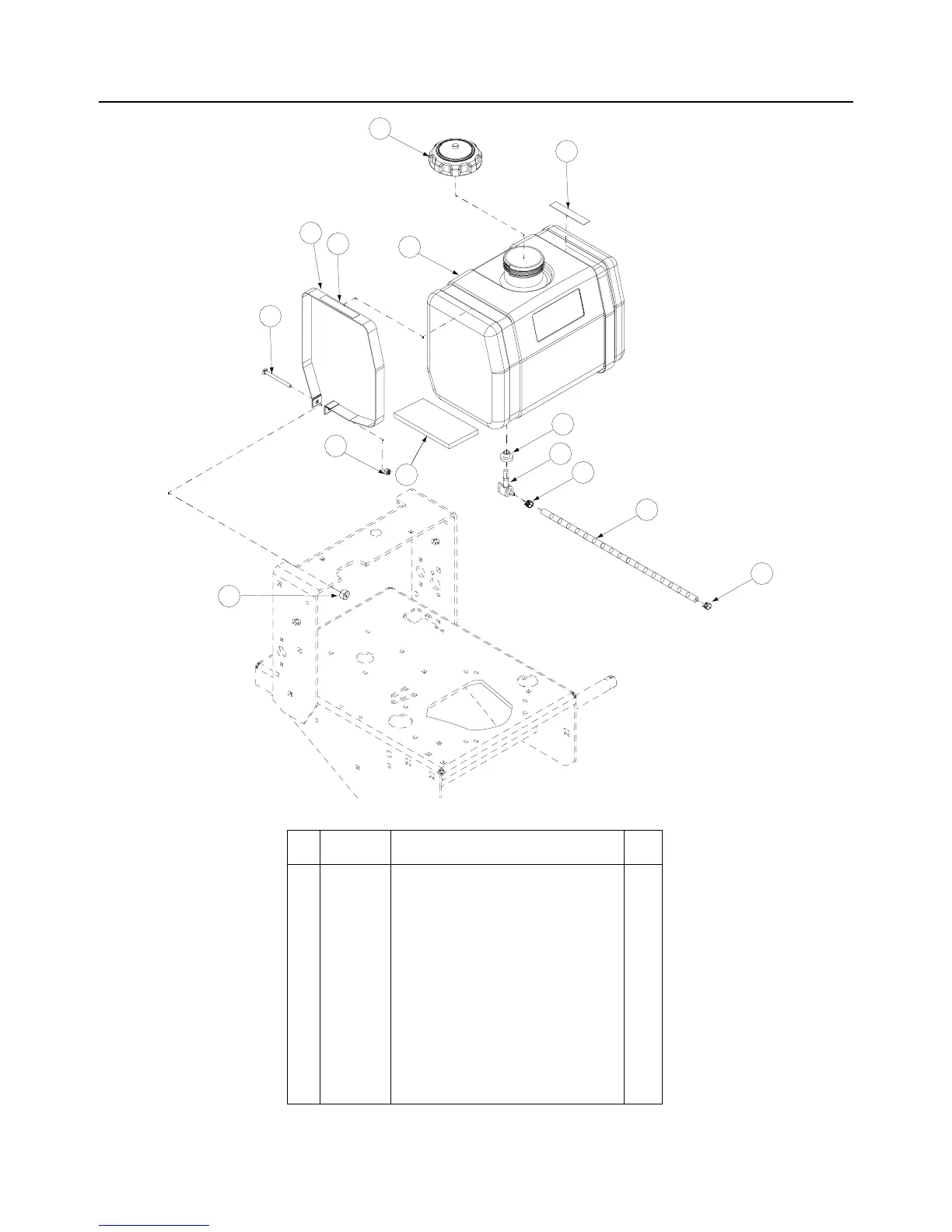

- Figure 10 & Parts List
Ref.
No. Part No. Description Qty.
1 00012152 Lock Nut, Nylon Insert, 1/4-20 2
2 00012235 Uni-Clamp 2
3 00021941 Spacer 2
4-- -- --
5 00021407 Rubber Stop Pad 2
6 01000068 Fuel Tank 1
7 01000069 Fuel Cap, 3.5 1
8 01001023 Fuel Tank Strap 2
9 01000281 Grommet Fuel Tank 1
10 00030784 Shut Off Fuel Tank 1
11 01001036 Label, Mower Warning Turn Off Engine 1
12 01001038 Label, Mower Instruction, Fuel Valve 1
13 -- Hose Fuel, 18" 1
14 01002509 Carriage Bolt, 1/4-20 x 3.00 2
