MTD 1332G - 1332 G; Deck Assembly Narrow Track

17

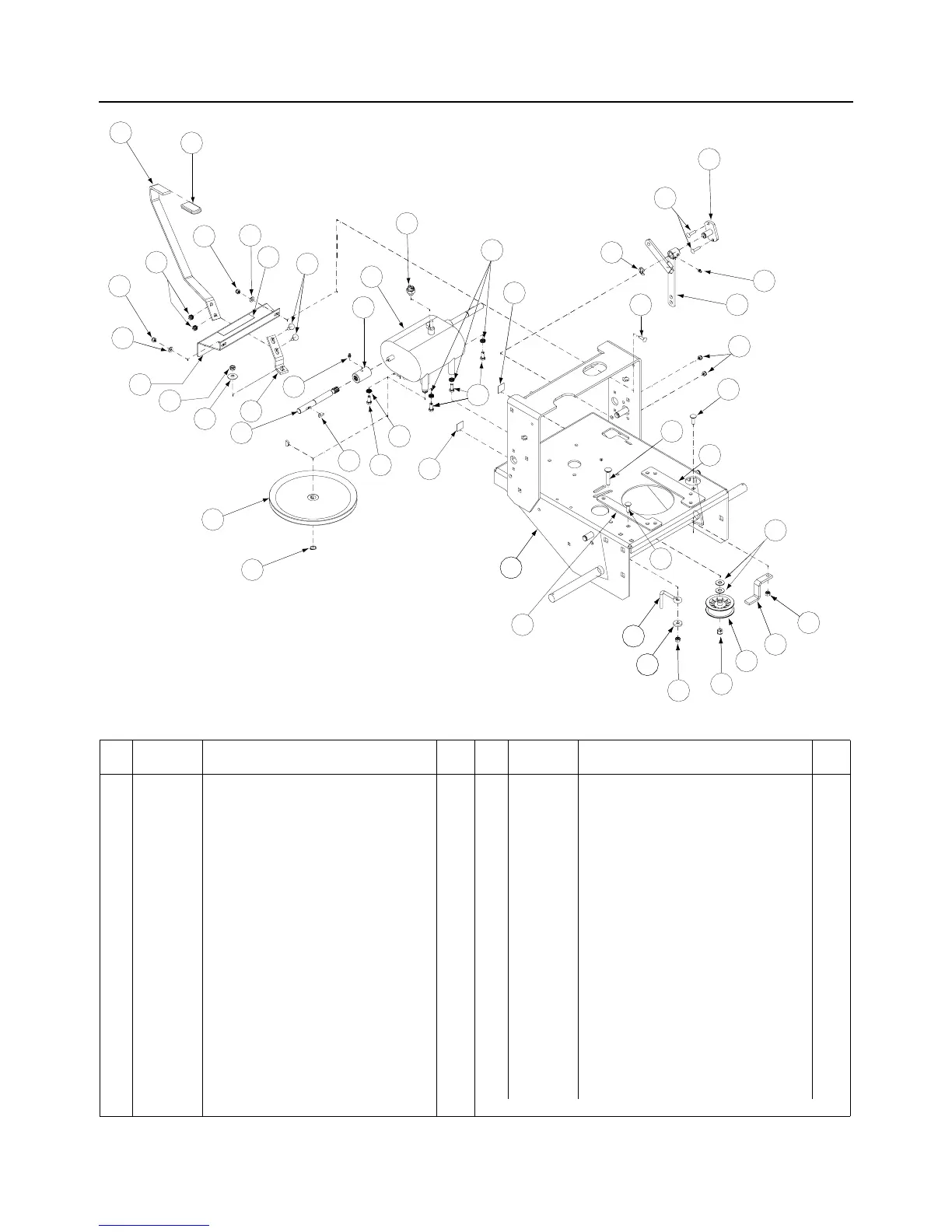

1332G / Deck Assembly Narrow Track
- Figure 13 & Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00006168 Flat Washer, 3/8 Zinc 2 21 00031602 Carriage Bolt, 1/4-20 x 1.00 2
2 00008792 Woodruff Key, 3/16 x 3/4 3 22 00060078 Grease Fitting, 1/4-28 x 3/16 3
3 00011454 Jam Nut, Insert Lock, 3/8-24 1 23 00083192 Idler Washer 1
4 00012152 Lock Nut, Nylon Insert, 1/4-20 4 24 00090006 Decal "Made In America 1
5 00012154 Flat Washer, 1/4 Zinc 2 25 01000073 Transmission Pulley 1
6 00012165 Nut, 5/16-18 Nylock 4 26 01001022 Shift Plate 1
7 00012168 Lock Washer, 5/16 Zinc 4 27 01001014 Shift Arm 1
800012173Lock Nut, Nylon Insert, 3/8-1612801000152Transmission, 5 Speed PE 700-083 1
9 00013406 Hex Cap Screw, 5/16-18 x 3/4 4 29 01000643 Carriage Bolt, 3/8-16 x 1 4
10 00014270 Carriage Bolt, 3/8-16 x2 1 30 01001026 Engine Deck Assembly 1
11 00017584 Carriage Bolt, 1/4-20 x .750 2 31 01001035 Label, Warning, Open Belt Drive 1
12 00018329 Switch, WB Transmission 1 32 01001037 Label, Mower Instruction 1
13 00021931 Drive Belt Guide 1 33 -- -- --
14 00021962 E-Ring, 5/8 1 34 00021902 Clutch, Bellecrank Weldment 1
15 00021964
External Retainer Ring 1 35 00021906 Bellecrank Pivot, Weldment 1
16 00030352 Jackshaft w/ Heavy Spline 2 36 00076402 Engine Belt Guide 1
17 00030353 Coupling w/Heavy Spline 2 37 01004055 Shift Handle 1
18 00030355 Bell Washer, .39 ID x 1.13 OD x .062 1 38 01004394 Engine Spacer, RH 1
19 00030782 Flat Idler Pulley w/Adapter 1 39 01004397 Engine Spacer, LH 1
2000030884Grip, .250 x 1 x 3-1/2, Yellow1
37
4
32
4
28
12
7
35
4
29
38
10
22
34
14
11
21
31
5
26
6
20
17
5
29
3
18
16
22
25
9
15
2
29
7
27
24
9
13
30
23
6
8
19
36
6
1
39
