Your Lawn
WARNING
Be sure to shut the
engine off, remove ig-
nition key, disconnect
the spark pJugwire(s)
and ground against
the engine to prevent
unintended starting
before removingthe
beJt(s).
Avoid the possibility of
a pinching injury. Do
not place your fingers
an the idler spring or
be_een the belt and a
pulleywhile removing
the beJt.
3/8" uareH01_'_

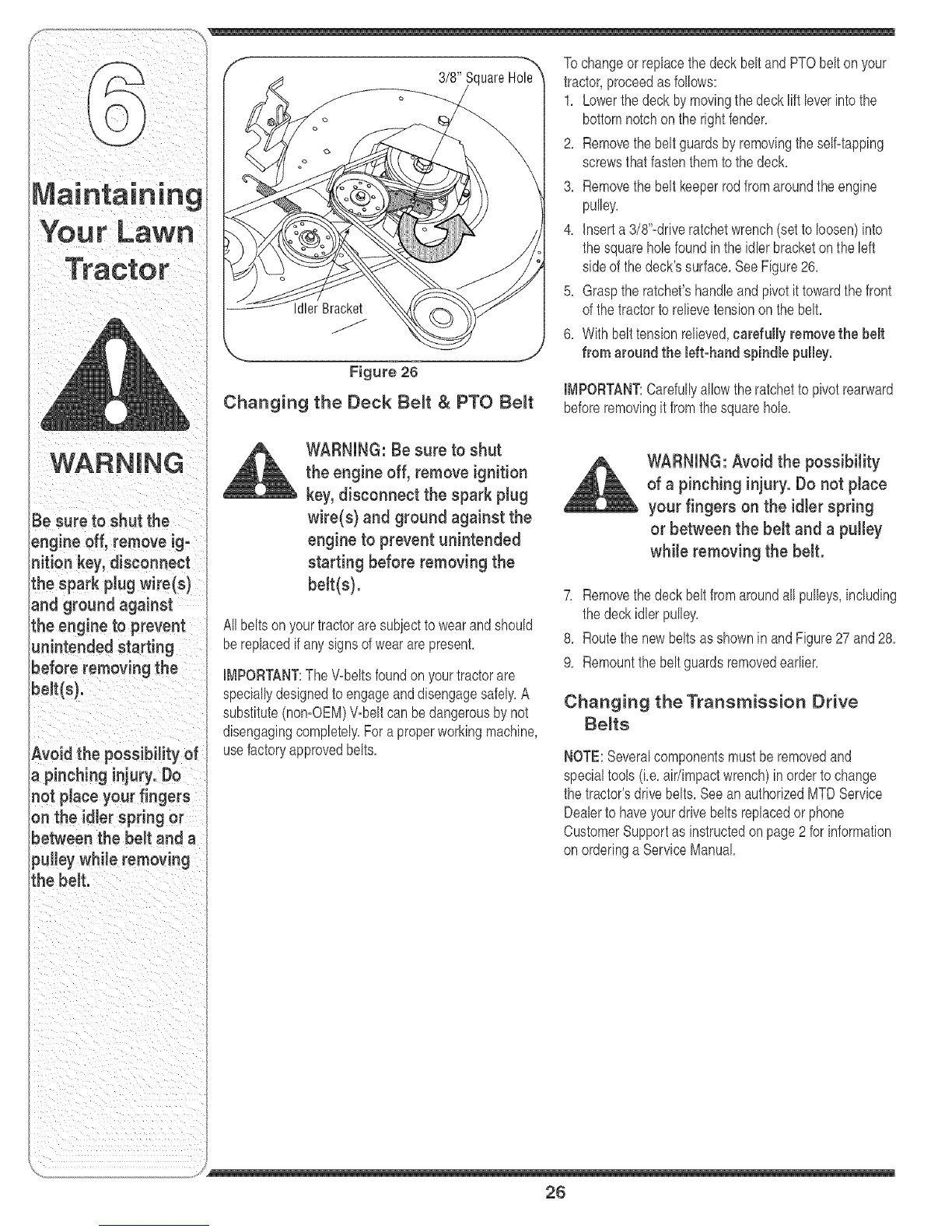

Figure 26
Changing the Deck Be_t & PTO BeNt
WARNING: Be sure to shut
the engine off, remove ignition
key, disconnect the spark plug
wire(s) and ground against the
engine to prevent unintended
starting before removing the
belt(s).
Allbeltson yourtractorare subiectto wearandshould
bereplacedif anysignsofweararepresent,
IMPORTANT:TheV-beltsfoundon yourtractorare
speciallydesignedto engageanddisengagesafely,A
substitute(nomOEM)V_beltcan bedangerousby not
disengagingcompletely,Fora properworkingmachine,
usefactoryapprovedbelts,
Tochangeor replacethedeck beltandPTObeltonyour
tractor,proceedas follows:
1, Lowerthe deckbymovingthedeck liftleverintothe
bottomnotchon the rightfender,
2, Removethe beltguardsby removingthe selfqapping
screwsthatfastenthemtothedeck,
3, Removethe beltkeeperrodfromaroundthe engine
pulley,
4, inserta 3/8"-driveratchetwrench(setto loosen)into
thesquareholefoundin theidlerbracketonthe left
sideof the deck'ssurface,SeeFigure26,
5, Grasptheratchet'shandleandpivotit towardthe front
ofthe tractortorelievetensiononthebelt,
6, Withbelttensionrelieved,carefully removethe belt
from around the left-hand spindle pulley.
IMPORTANT:Carefullyallowtheratchetto pivotrearward
beforeremovingit fromthe squarehole,
WARNING: Avoid the possibility
of a pinching injury. Do not place
your fingers on the idler spring
or between the belt and a pulley
while removing the belt.
7, Removethe deckbeltfromaroundall pulleys,including
thedeckidlerpulley,
8, Routethe newbeltsas shownin andFigure27 and28,
9, Remountthe beltguardsremovedearlier,
Changing the Transmission Drive
Be_ts
NOTE:Severalcomponentsmust beremovedand
specialtools(Le,air/impactwrench)inorderto change
thetractor'sdrKfebelts, Seean authorizedMTDService
Dealerto haveyour drivebeltsreplacedorphone
CustomerSupportas instructedonpage2 forinformation
onorderinga ServiceManual
J
26
