1

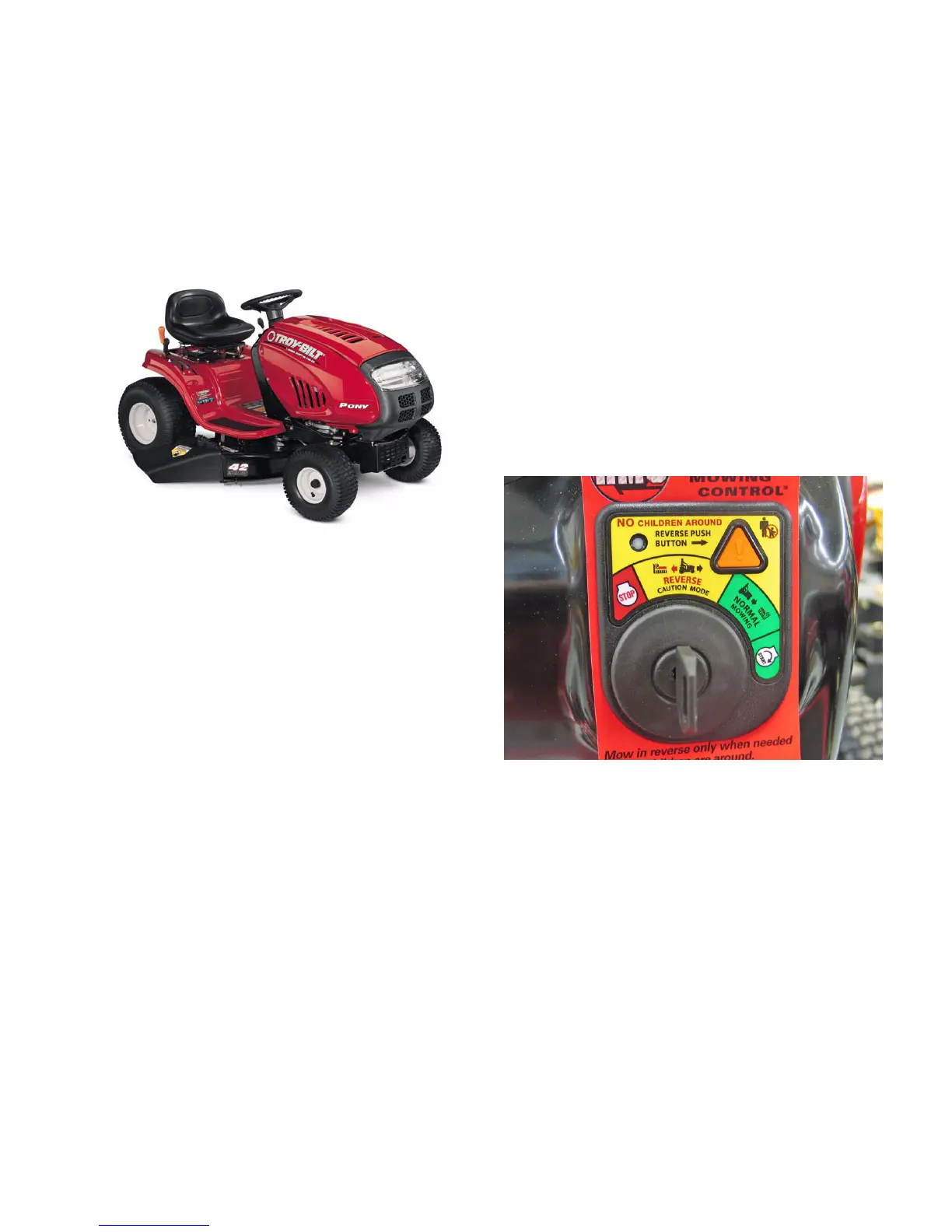

LT-5 LAWN TRACTOR (TROY-BILT MODEL
SHOWN)
GENERAL INFORMATION
Model used in the Service Manual - 13AN779G766
17.5 hp Briggs & Stratton engine - 42” cutting deck
• RMC - “Reverse Mowing Control” technology
• Greaseable Spindles.
• Square Shoulder Tires.
• Wider tires 15X6 and 20X8 .
• 18” Turning Radius
• Improved Independent Controls.
• Operational Controls on Fender and Dash.
• Cup Holder.
• Fully Welded Frame.
• 38” and 42” decks with Fast Attach.
• All decks are “Wash Kit” ready
• Enhanced Hour Meter Package
RMC - “REVERSE MOWING CONTROL”
The operator can choose to over-ride our “No Cut In
Reverse” safety system.
The revised ANSI Standard B71.1 taking effect Sep-
tember 1, 2004 states:
“A means shall be provided that prevents reverse drive
operation at a ground speed greater than 1 ft./sec.with
powered blade(s).
An override capability may be provided to permit
reverse drive with powered blades temporarily. If an
override capability is provided, it shall automatically
reset when one or more of the following actions occurs:
The blade(s) is (are) re-engaged or (2) the engine is
restarted or (3) the directional control is moved from
reverse.”
How It Works:
• Operator turns the key from the run position #3
to position #2. See Figure 1.
• Presses RMC button.
• Light indicator gives visual confirmation to the
operator.
Operator may mow in forward or reverse until:
• Leaves the tractor seat.
• Turns the key back to right (position #3).
• Turns the engine off (position #1).
Incorporated on 2005 LT-5 and RT99.
Figure 1
#1
#2
#3
#4
Servicing the LT-5 Lawn Tractor
