Chapter 10: Crankshaft, piston and Connecting Rod
88
NOTE: Early production of the 1P70 series
engines had a steel cam shaft. See Figure 10.3.
12. Remove the valve tappets. See Figure 10.4.
13. Remove the connecting rod cap using a 10mm
wrench. See Figure 10.5.
NOTE: Match mark the connecting rod cap and
the connecting rod so that they can be reassem-
bled in the proper orientation.
NOTE: Rotating the crank shaft after the con-
necting rod bolts are removed will help to sepa-
rate the connecting rod from the cap.
See Figure 10.6.

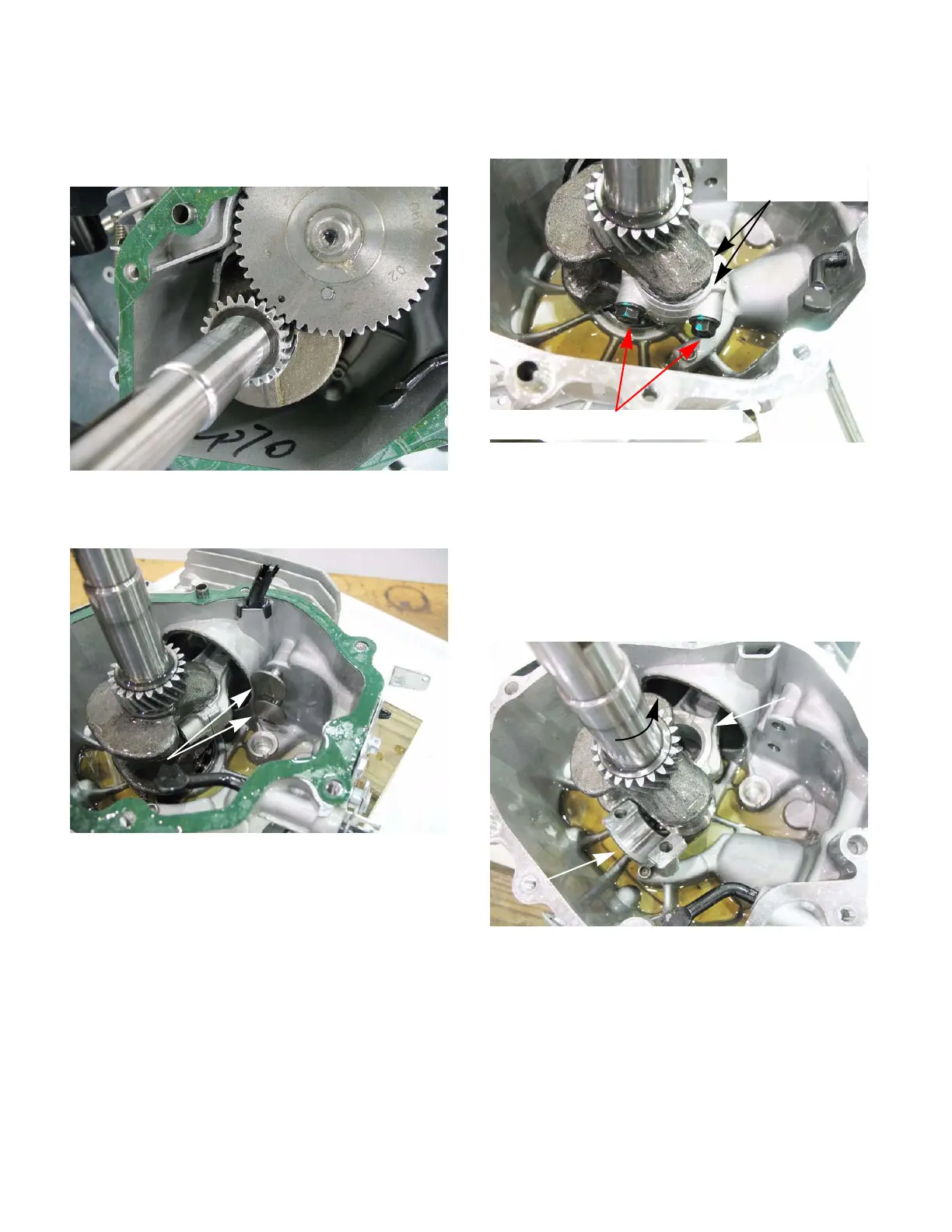

Figure 10.3
Figure 10.4
Valve tappets
Figure 10.5
Remove the connecting rod bolts
Place a match mark
here
Figure 10.6
Connecting rod
Cap
