TOOLS Menu – Calibration Wizard Continued

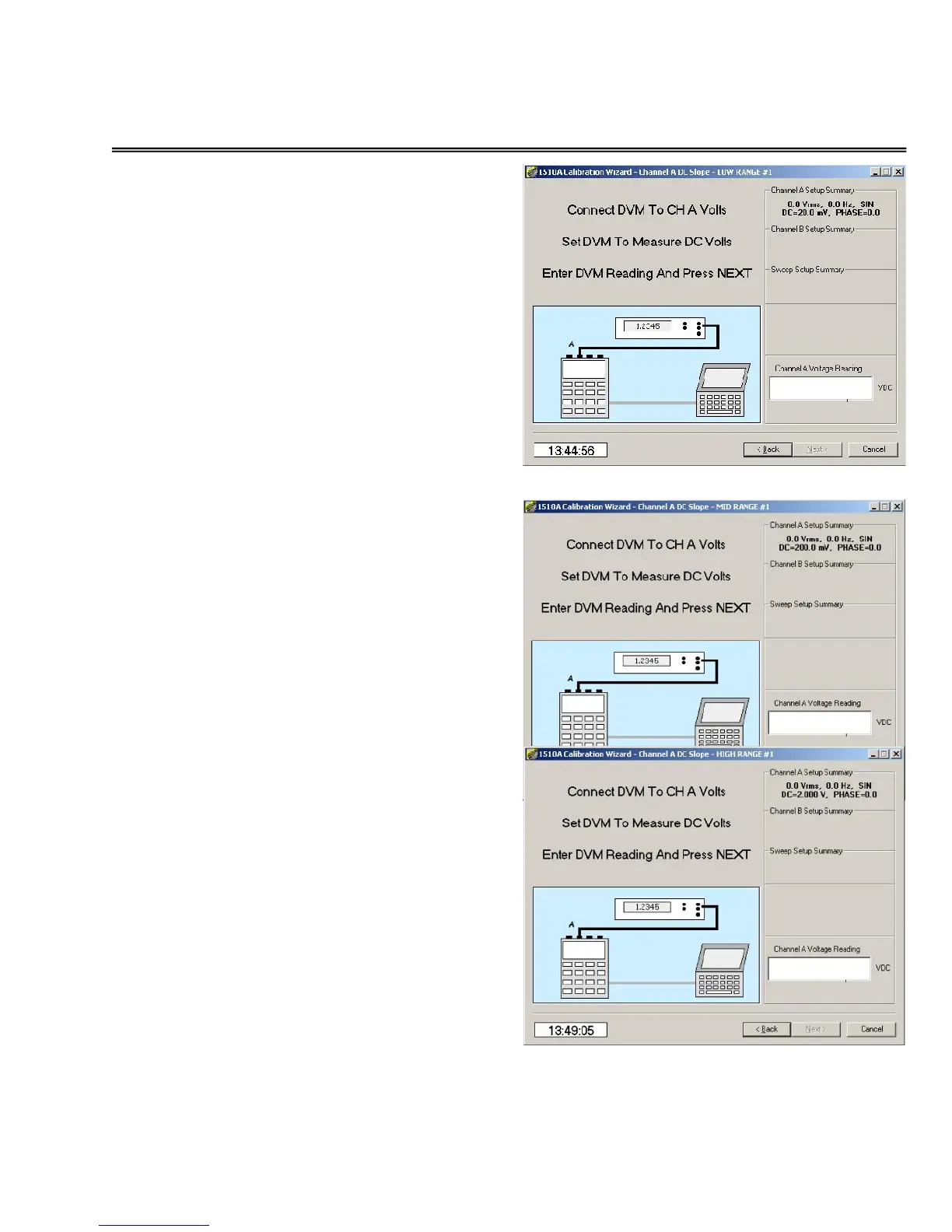

Channel A DC low range calibration
Next, click in the Voltage Reading
window and enter the reading of the
voltmeter.
Set the voltmeter for DC readings.
This screen is repeated for the three
low range voltages (20, 50, and 80
mvdc) used.
Channel A mid range DC calibration
Next, click in the Voltage Reading
window and enter the reading of the
voltmeter. Verify that the correct
units (Pk, Pk-Pk, or RMS) are
selected for the type of voltmeter
you are using.
Set the voltmeter for DC readings.
This screen is repeated for the three
low range voltages (200, 500, and
800 mvdc) used.
Channel A high range DC calibration
Next, click in the Voltage Reading
window and enter the reading of the
voltmeter.
Set the voltmeter for DC readings.
This screen is repeated for the three
low range voltages (2, 5, and 8 vdc)
used.
