3. Temposonics II Wiring
Table 3A
Temposonics II Connections (Neuter Version and with APM)
Temposonics II Integrated Temposonics II Configurations:
or Extension Cable • Neuter - No Personality Module
(see Note 1) • APM - Analog Personality Module
Pin No. Wire Color Code Wire Color Code Neuter APM Option
1 White/Blue Stripe White DC Ground DC Ground
2 Blue/White Stripe Brown Frame Frame
3 White/Orange Stripe Gray Not Used Displacement Return
4 Orange/White Stripe Pink Not Used Displacement Out
5 White/Green Stripe Red +Vdc +Vdc
6 Green/White Stripe Blue -Vdc -Vdc
7 White/Brown Stripe Black Output Pulse Return Not Used
8 Brown/White Stripe Violet Output Pulse Not Used
9 White/Gray Stripe Yellow (+) Interrogation (Notes 2, 3) Not Used
10 Gray/White Stripe Green (-) Interrogation (Notes 2, 3) Not Used
NOTES:
1. Verify if the cable has striped or solid color leads and make connections accordingly.
2. 1 to 4 microseconds maximum pulse duration.
3. WARNING: Under no condition should both the positive (+) and negative (-) interrogation leads be connected at the same time
when using the "NEUTER" version Temposonics II transducer. The unused interrogation lead must be connected to DC ground.
4. Temposonics II w/APM requires
+
/-13.5 to
+
/-15 Vdc. All others require +/-12 Vdc to +/-15 Vdc.

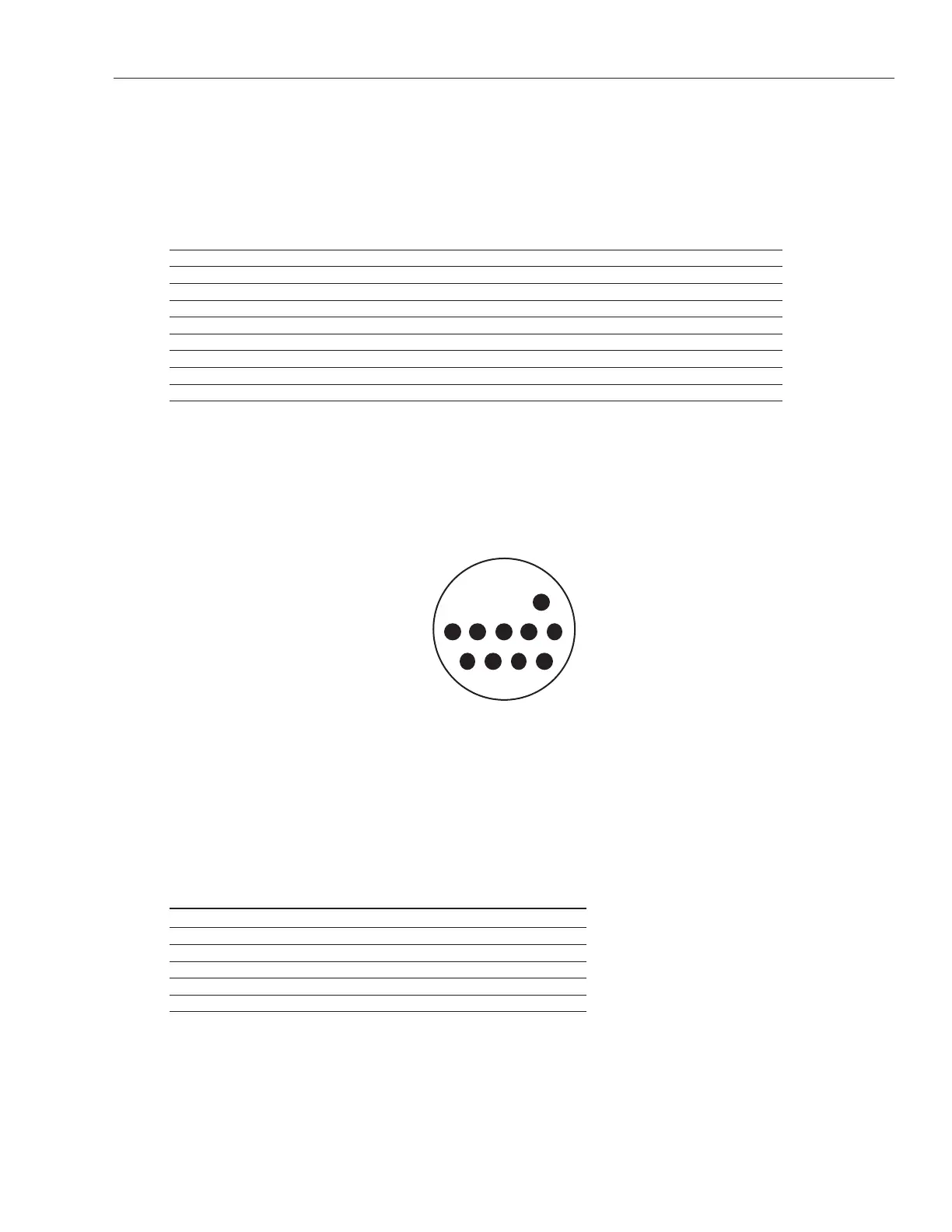

Temposonics II 10-Pin Connector
(connections styles RB or RC)
Table 3B
Connections - Original Temposonics Transducer
Original Temposonics Wire Color Code Signal Function
Connector Pin Number
A Green or Gray + 15 Vdc
B Black DC Ground
C Orange or Brown Return Pulse (from LDT)
D Blue - 15 Vdc
E White Interrogation Pulse
F Red + 12 Vdc
