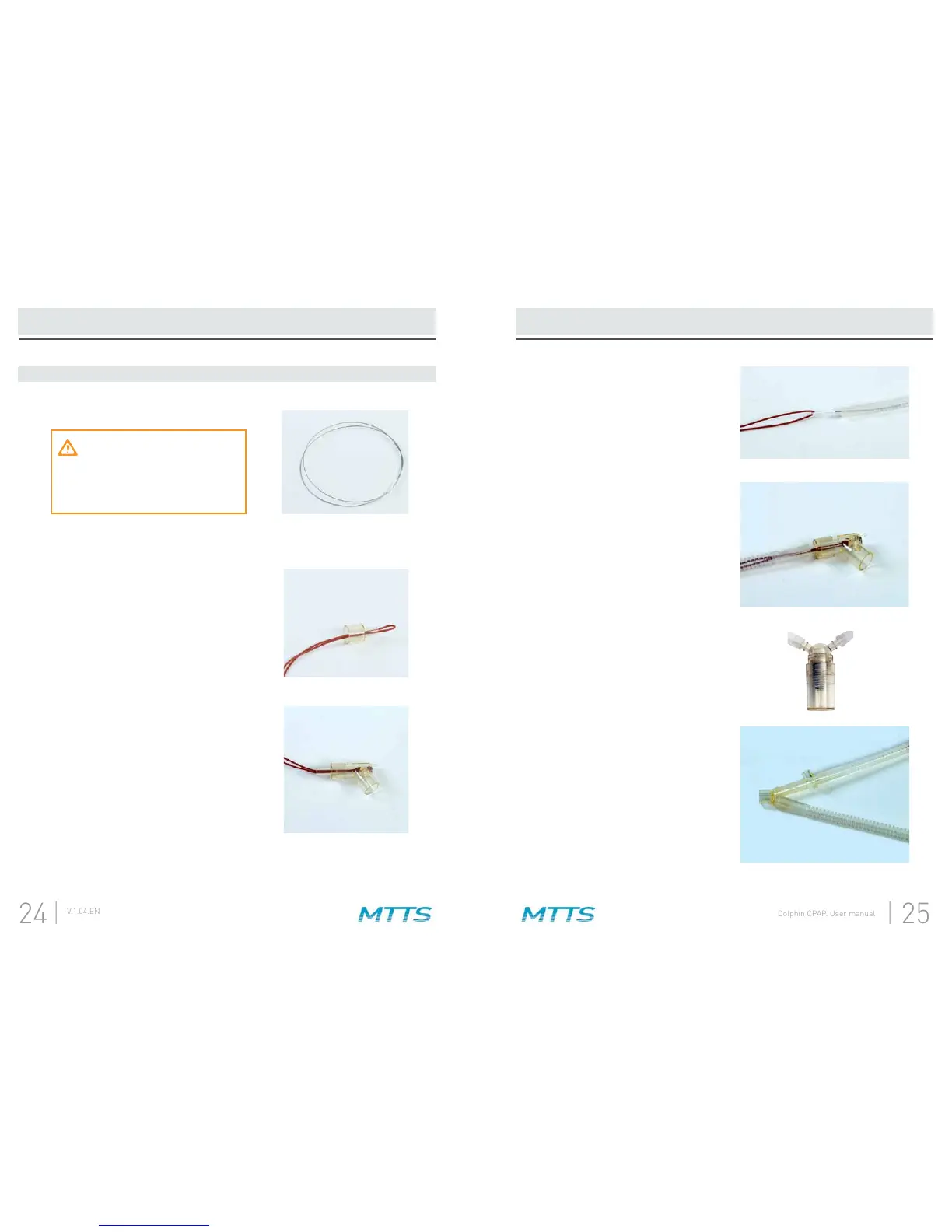

Push the heater wire from the wide side
of the straight connector through to the
other side.
B.
Pull the straight connector down the
wire until it reaches the heater wire
housing. Firmly connect the two plastic
parts.
C.
Insert the draw line into the inspiratory
breathing tube until the narrower end
extends outside of the tube. Hook this
end around the heater wire.
D.
Gently pull the wire into the breathing
tube. Continue pulling until the
breathing tube can be attached to the
straight connector. Attach the tube
line slightly to detach it from the heater
wire. Pull the draw line completely out
of the tube and set it aside.
E.
Attach the straight connector with
temperature probe port to the end of
the inspiratory tube (the direction of
this part is not important). Then attach
the silicone connector, wye connector,
and expiratory breathing tube as shown
in the pictures.
G.
Attach water trap between expiratory
breathing tubes (the order of the tubes
is not important)
F.
Make sure the draw line is
clean before using it. You
should disinfect it with alcohol
based solution.
A.
