mtts Dolphin CPAP - CPAP Setup - Circuit Connections; Attach Heated Breathing Circuit

V.1.04.EN
Dolphin CPAP. User manual
Setup (CPAP)

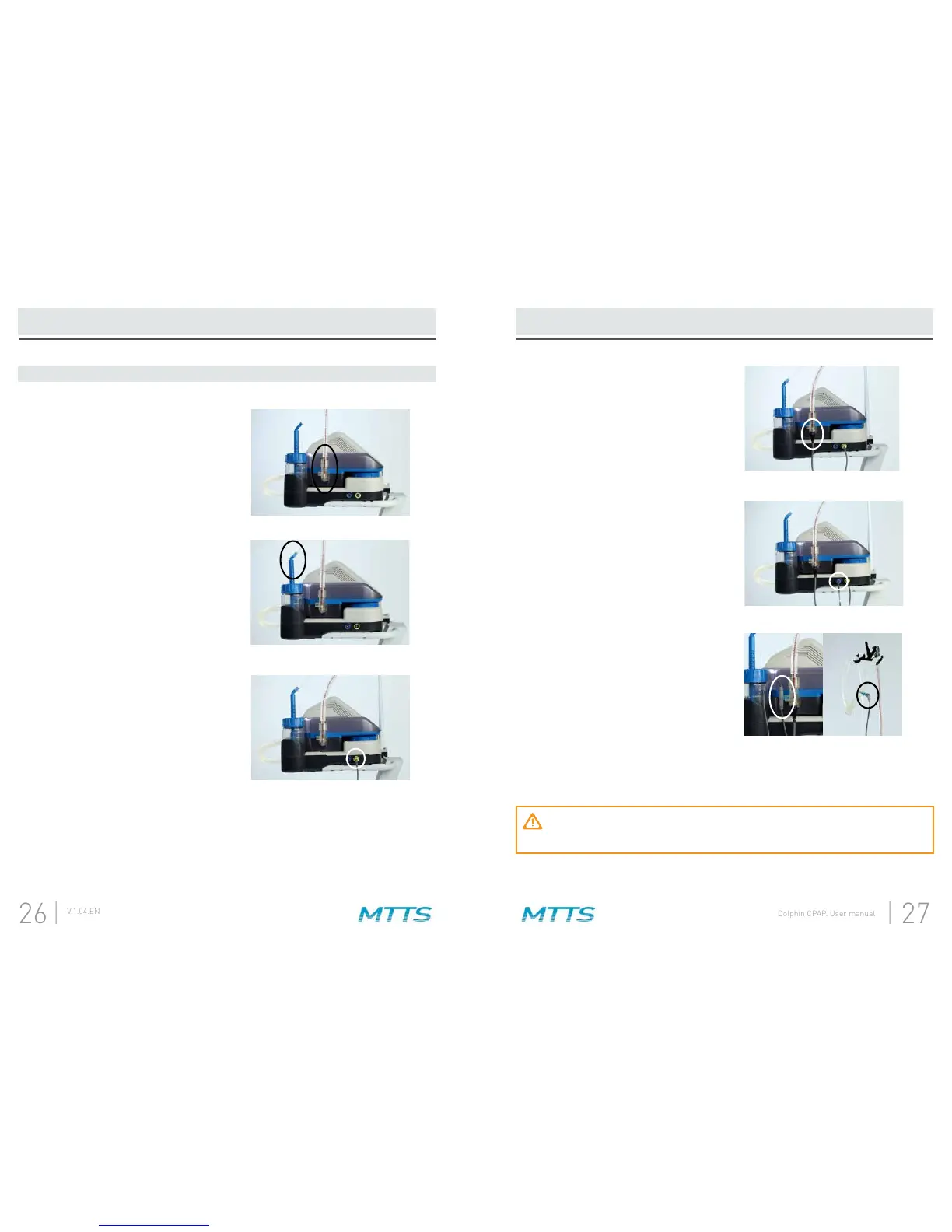

4. Attach the heated breathing circuit.
26
Make sure the temperature probes are fully inserted. If they are not, it could
result in a burn to the patient due to increased inspiratory gas temperature.
Setup (CPAP)
27
Attach the heater wire housing to the
    
should point straight up, as shown in
the picture.
A.
Attach the expiratory tube to the PEEP
column.
B.
Attach the yellow plug of the heater
wire power cable to the yellow female
connector on the device.
C.
Attach the black end of the heater wire
power cable to the heater wire
connector.
D.
Attach the blue plug of the temperature
sensor cable to the blue female
connector on the device.
E.
Attach temperature probe T1 to the port
in heater wire housing (white circle)
and T2 to port in the straight connector
(black circle).
F.
