Humidity sensor – Installation
Note: Apply lubricant for O-ring sparingly.

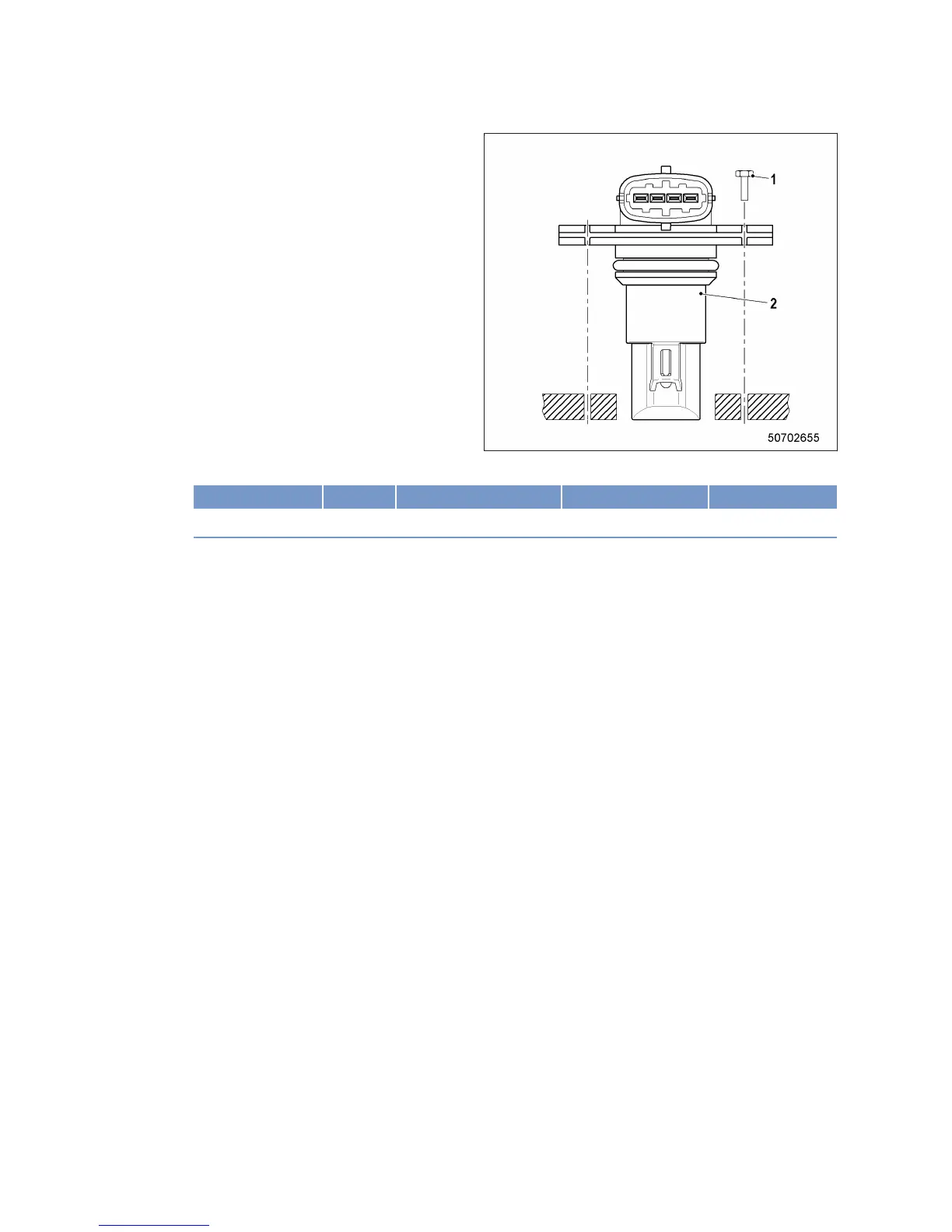

1. Insert sensor (2) in bore, ensuring correct
installation position.
Note: Take direction of air flow into account.
2. Screw in screws (1).
3. Use torque wrench to tighten screws (1) to the specified tightening torque.
Name Size Type Lubricant Value/Standard
Sensor M6 Tightening torque 12 Nm +5 Nm
4. Fit male connector and latch.
