6.14.4 Drive belt – Replacement
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Drive belt
(→ Spare Parts Catalog)

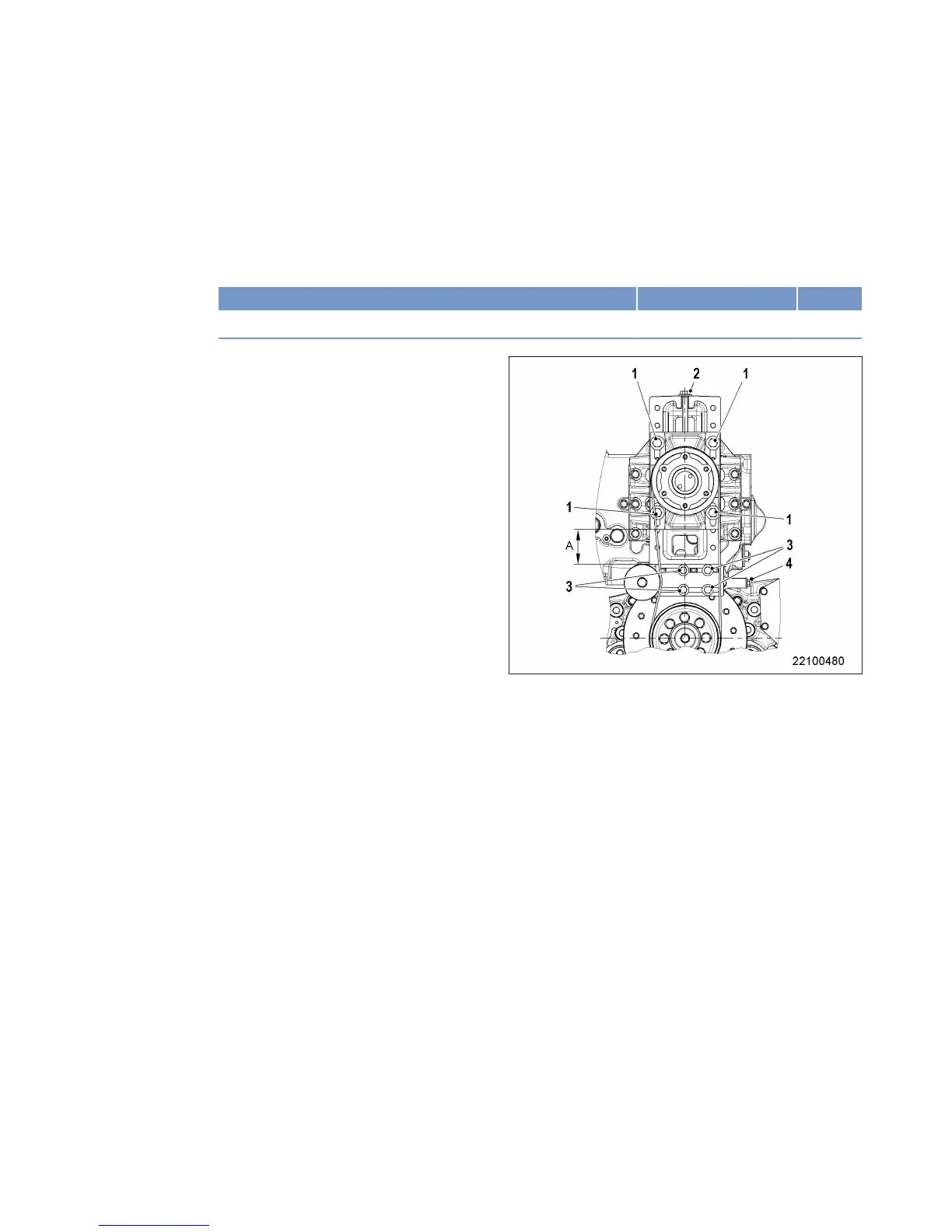

Fan drive – Drive belt replacement
1. Remove protective cover from radiator.
2. Remove fan.
3. Slacken off securing screws (1).
4. Screw out screw (2) as far as necessary to
allow drive belt removal.
5. Check belt pulley on radiator bearing mount
and crankshaft for contamination and clean
if necessary.
Note: When placing the drive belt in the grooves,
no force must be applied.
6. Fit new drive belt.
7. Screw in screw (2) until distance (A) is 100
mm.
8. Adjust and check drive belt tension
(→ Page 96).
9. Install fan.
10. Install protective cover.
MS150094/01E 2012-08 | Task Description | 97
TIM-ID: 0000025462 - 001
