6.9.2 Exhaust gas circulation - Checking flap operation
Preconditions
☑ Engine is stopped and starting disabled.
WARNING
Component is hot.
Risk of burning!
• Wear protective gloves.
Checking exhaust flap operation
1. For installation position of exhaust flaps, refer to overview (→ Page 67).

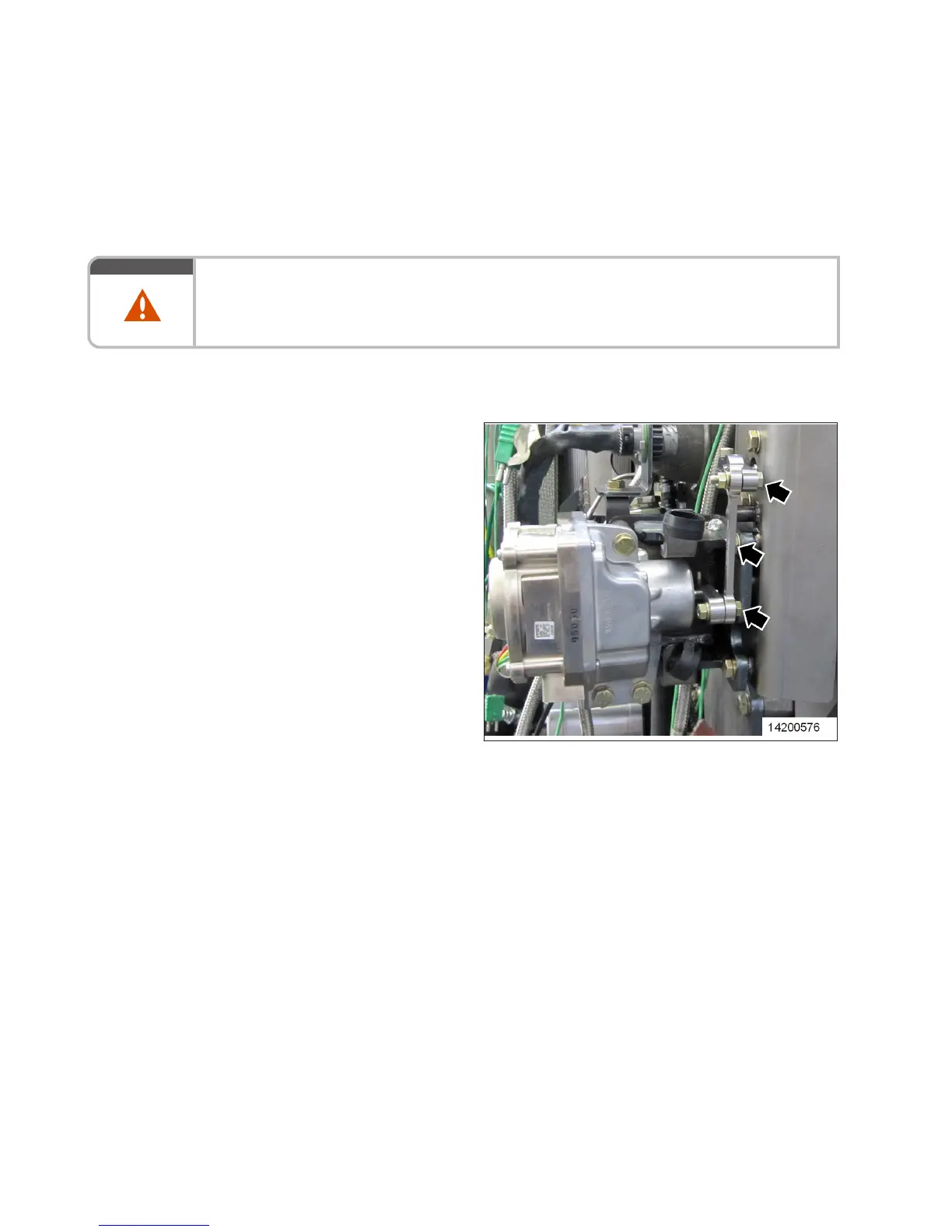

2. Check operability and ease of movement of
exhaust flaps and control linkage by moving
the assembly at the points (arrowed) shown
in the illustration.
Result: If exhaust flap is jammed or sluggish:Con‐
tact Service.
68 | Task Description | MS150094/01E 2012-08
TIM-ID: 0000024000 - 001
