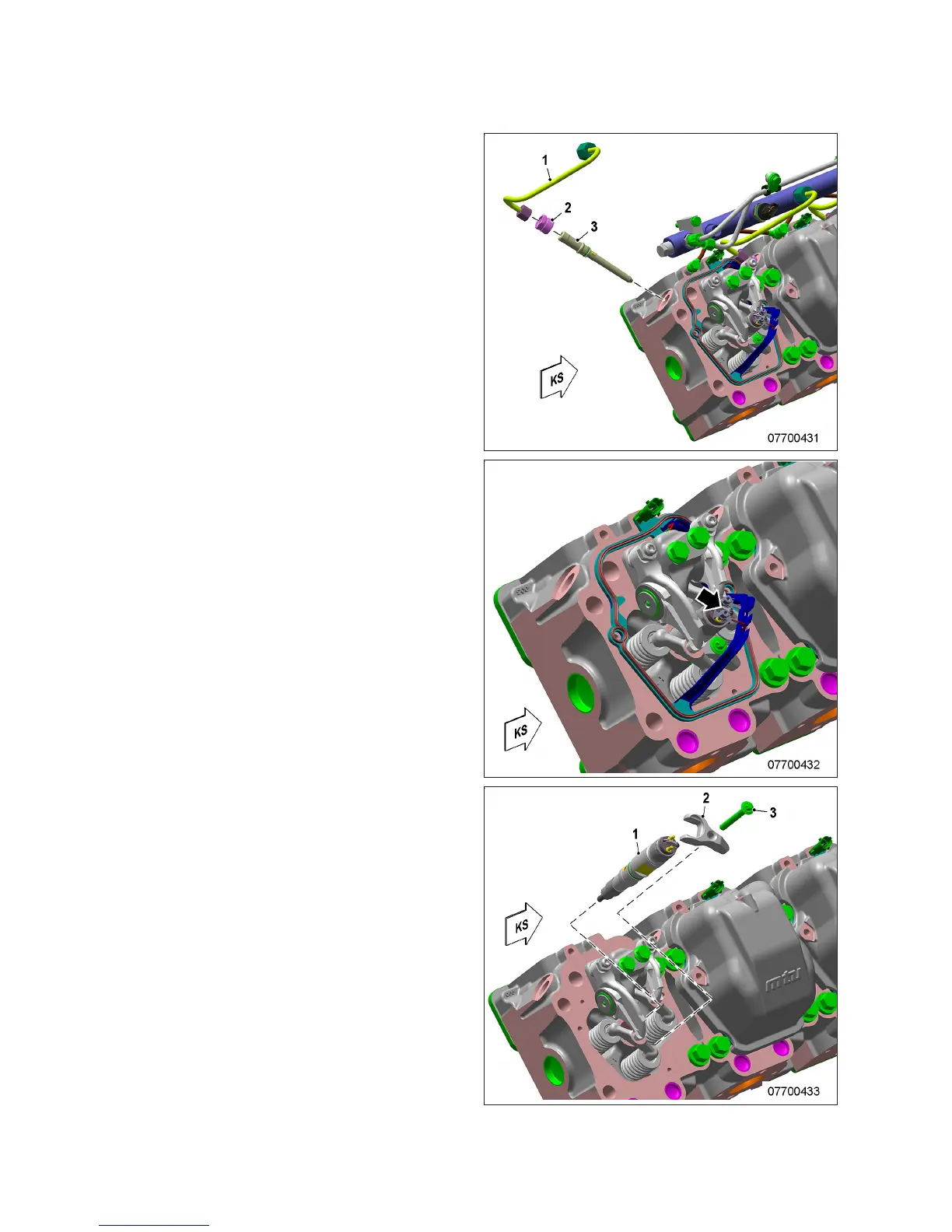

Removing injector
1. Remove fuel line (1).
2. Unscrew union nut (2).
3. Pull out pressure pipe neck (3).
4. Extract fuel from the exposed bores using
the suction device.
5. Disconnect terminals (arrow) on injector
and pull out cable lugs.
6. Remove gasket.
7. Remove screw (3).
Note: Screw (3) may be installed only once.
8. Take off hold-down clamp (2).
9. Use the puller to pull out injector (1).
10. After removal, seal all openings with suita‐
ble covers.
50 | Task Description | MS150094/01E 2012-08
