7.10.2 Air filter – Removal and installation
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Torque wrench, 8-40 Nm
F30043446 1
Air filter – Removal and installa-
tion

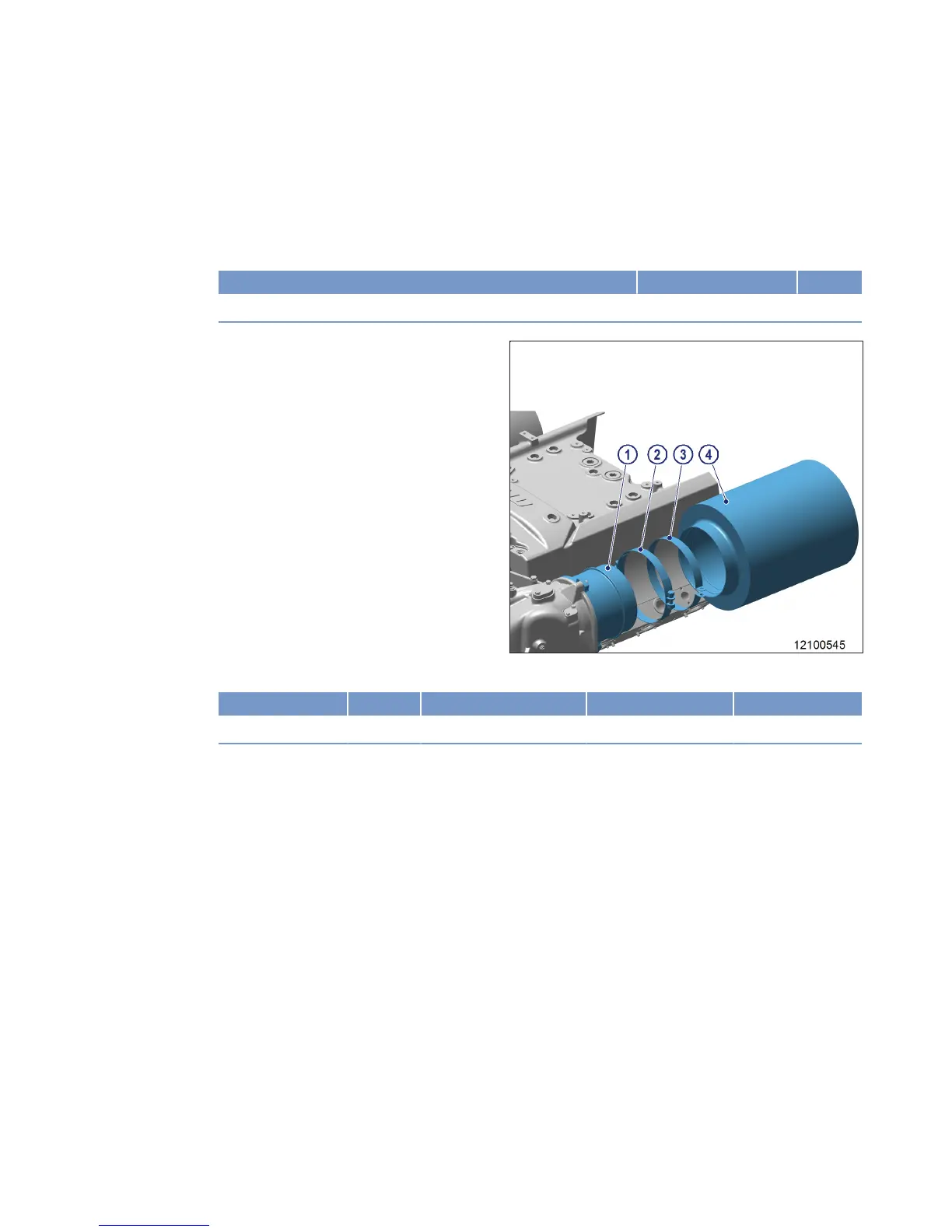

1. Release screws from clamps (2) and (3).
2. Remove air filter (4) and clamps from con-
necting flange (1) of intake neck.
3. Clean connecting flange (1) of intake neck
and check for free passage.
4. Attach air filter (4) with clamps (2) and (3) on
connecting flange (1) of intake neck.
5. Tighten screws on clamps (2) and (3) with torque wrench to specified tightening torque.
Name Size Type Lubricant Value/Standard
Screws M12 Tightening torque 15 +2 Nm
MS150119/01E 2016-02 | Air Filter | 115
