7.4 Valve Drive
7.4.1 Cylinder head cover – Removal and installation
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Torque wrench, 8-40 Nm
F30043446 1
Sealing
(→ Spare Parts Catalog)
Preparatory steps
1. Remove air filter (→ Page 115).
2. Remove intake housing.

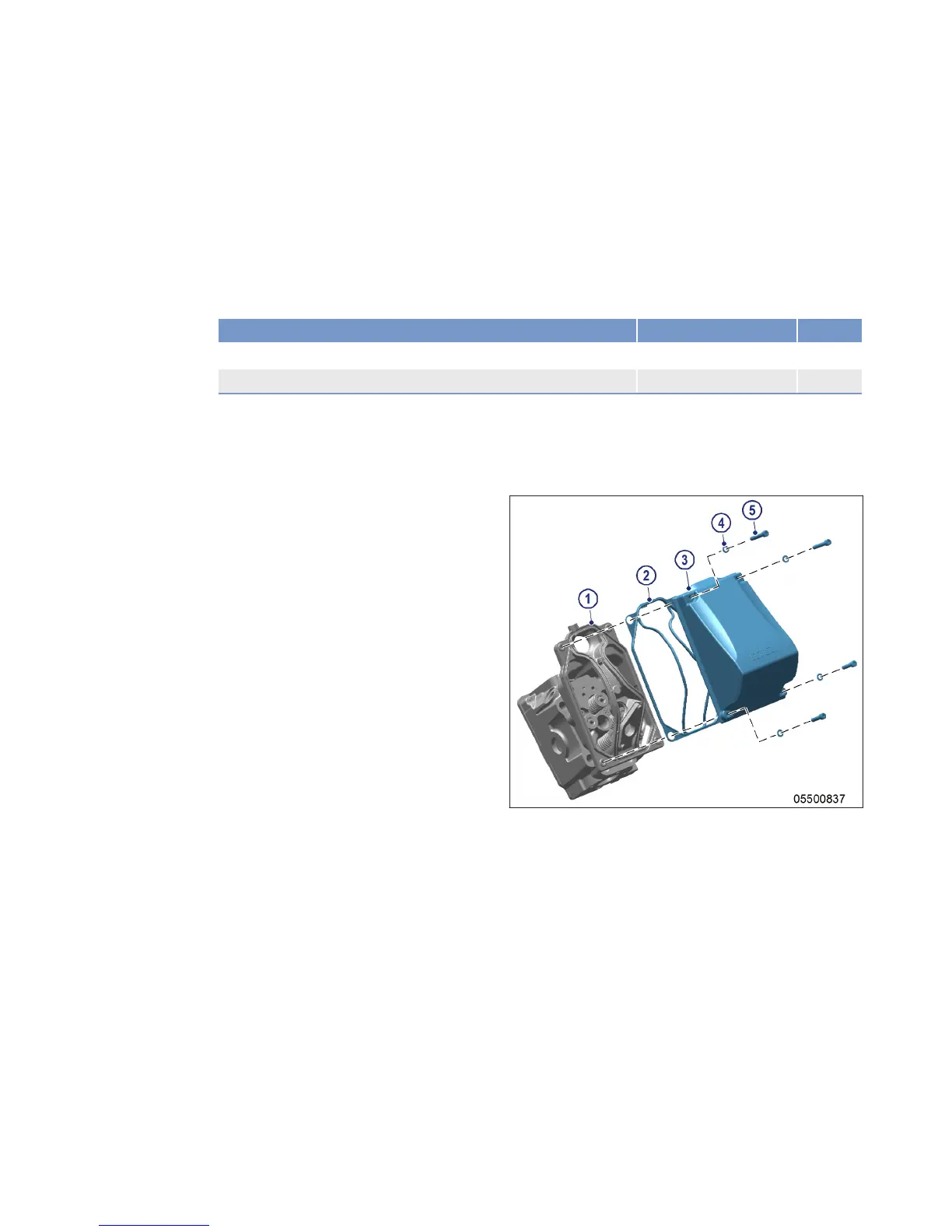

Cylinder head cover, removal
and installation
1. Unscrew screws (5) and take off with wash-
ers (4).
2. Remove cylinder head cover (3) with gas-
ket (2) from cylinder head.
3. Clean mounting surface (1).
4. Check condition of gasket (2) on cylinder
head cover.
Result: Replace damaged seals.
5. Place screws (5) with washers (4) in position
and tighten to specified tightening torque.
Final steps
1. Install air filter (→ Page 115).
2. Install intake housing.
3. Check cylinder-head covers for leaks.
