2.4 Engine – Overview

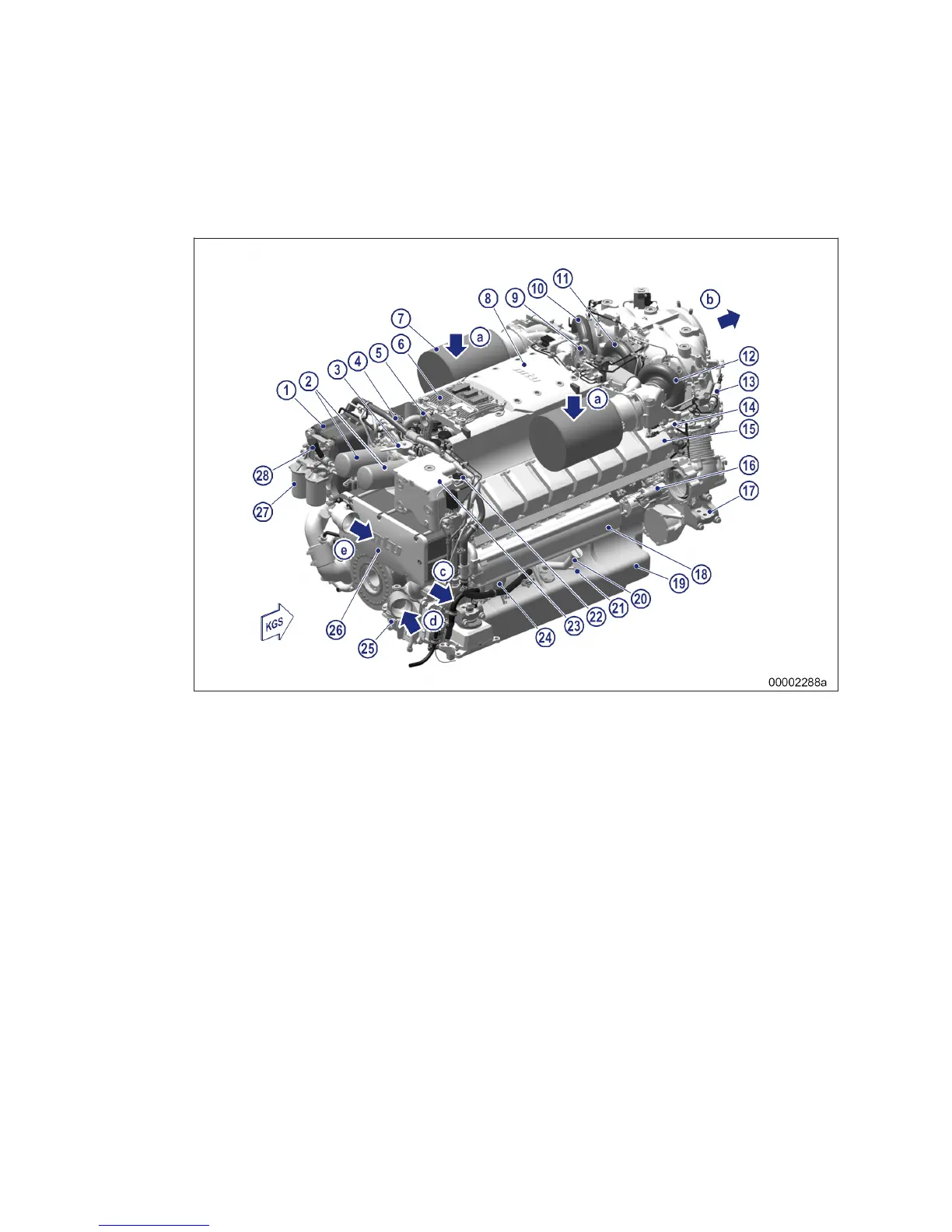

Overview of free end
Also applies similarly to 12V.
1 Engine oil heat exchanger
2 Engine oil filter
3 Diverter lever for engine oil
filter
4 Fuel cooler
5 Engine lifting eye (free end)
6 Engine governor
7 Air filter (air intake)
8 Air collecting housing
9 Engine lifting eye (driving
end)
10 Exhaust turbocharger, right
(secondary turbocharger)
11 Exhaust turbocharger (pri-
mary turbocharger)
12 Exhaust turbocharger, left
(secondary turbocharger)
13 Actuating cylinder for ex-
haust flap
14 Actuating cylinder for air
flap
15 Cylinder head cover
16 Electric starter
17 Engine mounting bracket
18 Exhaust housing
19 Oil pan
20 Oil filler neck
21 Oil dipstick
22 Engine coolant filler neck
23 Coolant distribution housing
with integrated expansion
tank
24 Battery-charging generator
25 Raw water pump
26 Plate-core heat exchanger
27 Fuel duplex filter
28 Hand pump
a Air intake
b Exhaust outlet (horizontal)
c Raw water connection to
gearbox cooling system
d Raw water connection from
sea
e Raw water connection to
sea
KGS = Kupplungsgegenseite
(free end)
Overview of driving end
Also applies similarly to 12V.
