7.22.8 Engine governor ECU 9 – Removal and installation
Preconditions
☑ Engine is stopped and starting disabled.
NOTICE
Wrong engine governor installed.
Engine damage!
• When reassembling an engine, make sure that the governor with the data record for the given engine
is installed.
Removing engine governor from
engine

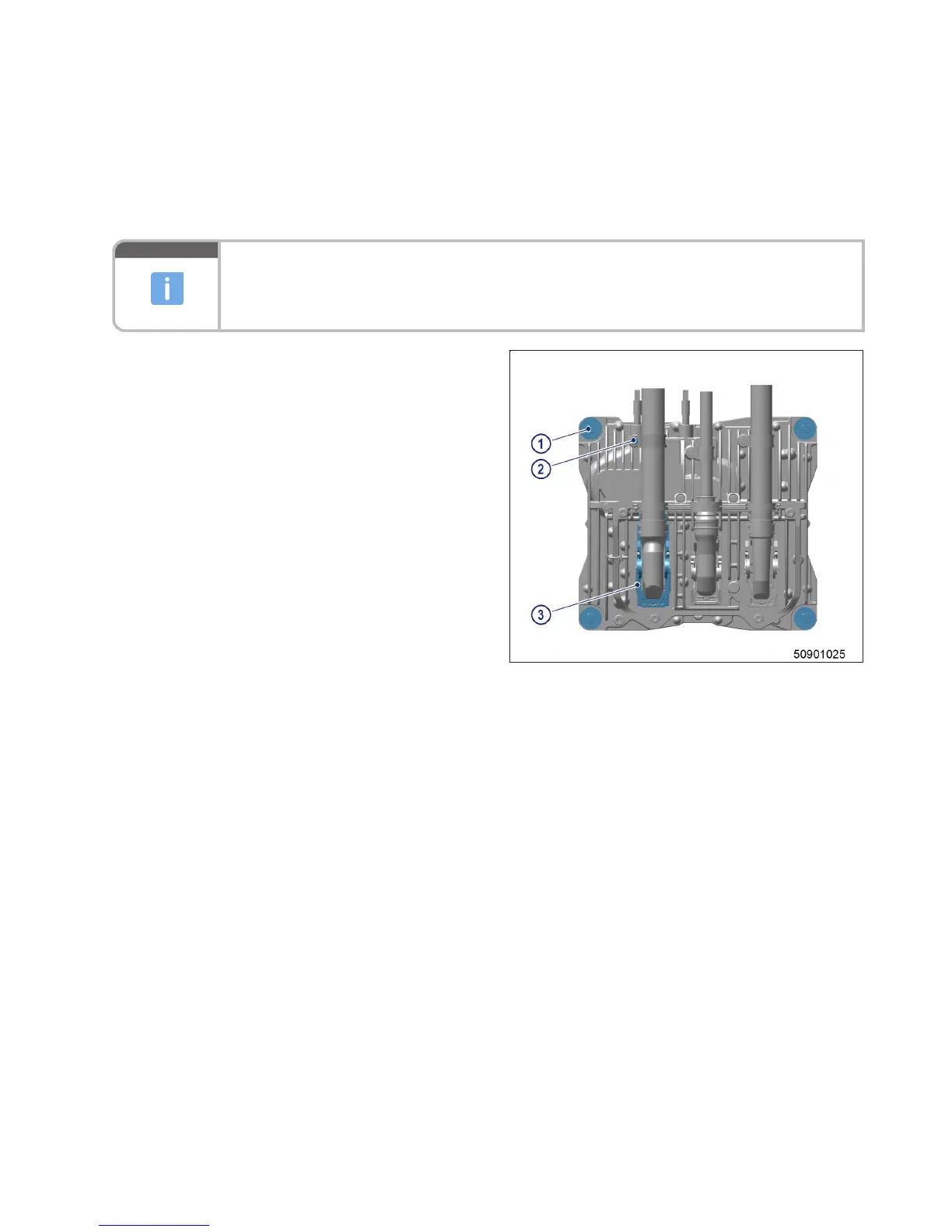

1. Note or mark assignment of cables and con-
nectors.
2. Remove all screws (2).
3. Undo clips (3) on connectors.
4. Remove all male connectors.
5. Remove screws (1).
6. Take off engine governor.
Installing engine governor on engine
1. Install in reverse order. Ensure correct assignment of connectors and sockets.
2. Check resilient mount before installing.
Result: If resilient mount is porous or defective then replace it.
