7.11 Air Intake
7.11.1 Service indicator – Signal ring position check
Preconditions
☑ Engine is stopped and starting disabled.
Checking signal ring position

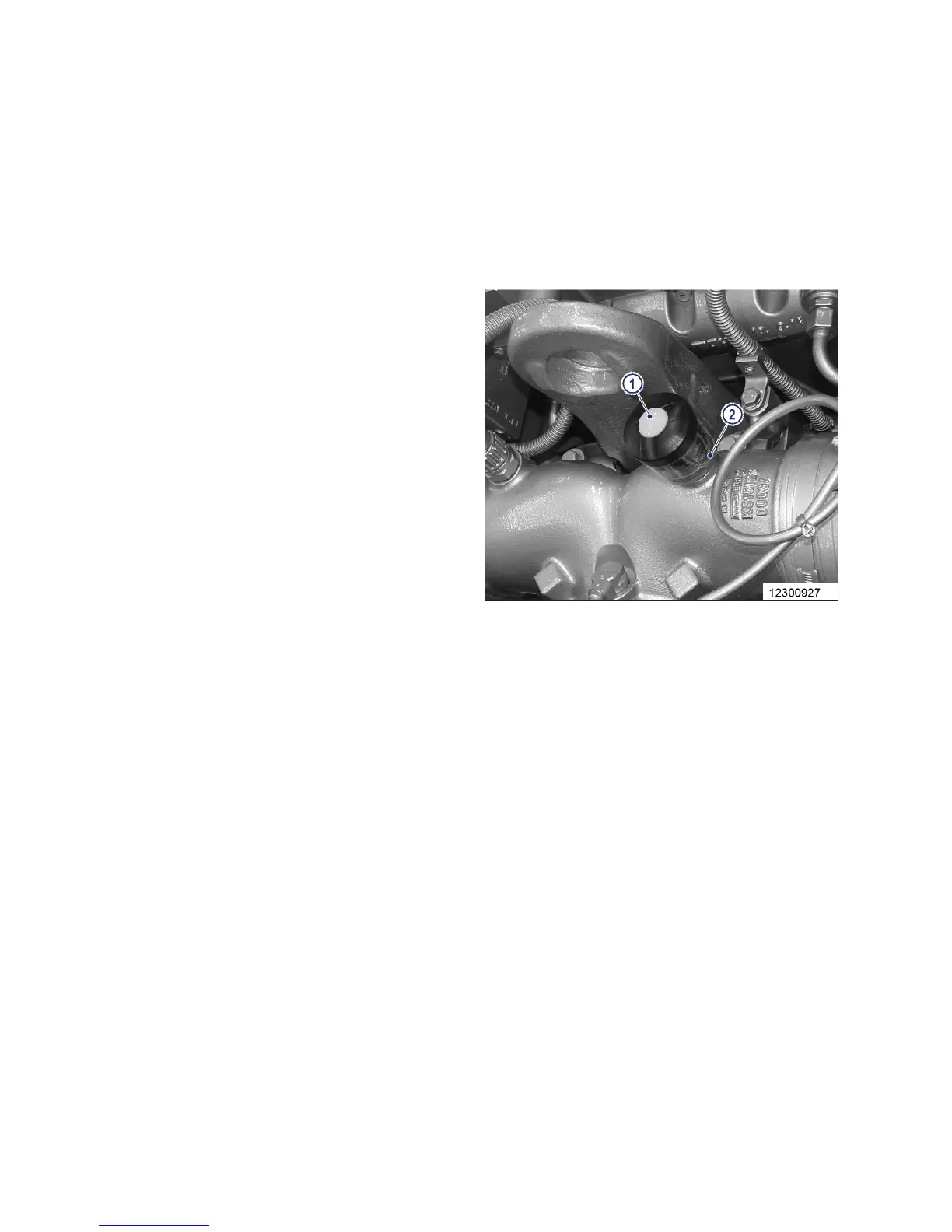

1. When the yellow piston has reached the red
shaded Service lettering (2), replace air filter
(→ Page 114).
2. After installation of new filter, press reset
button (1).
Result: Signal ring returns to initial position.
116 | Air Intake | MS150119/01E 2016-02
TIM-ID: 0000067141 - 001
