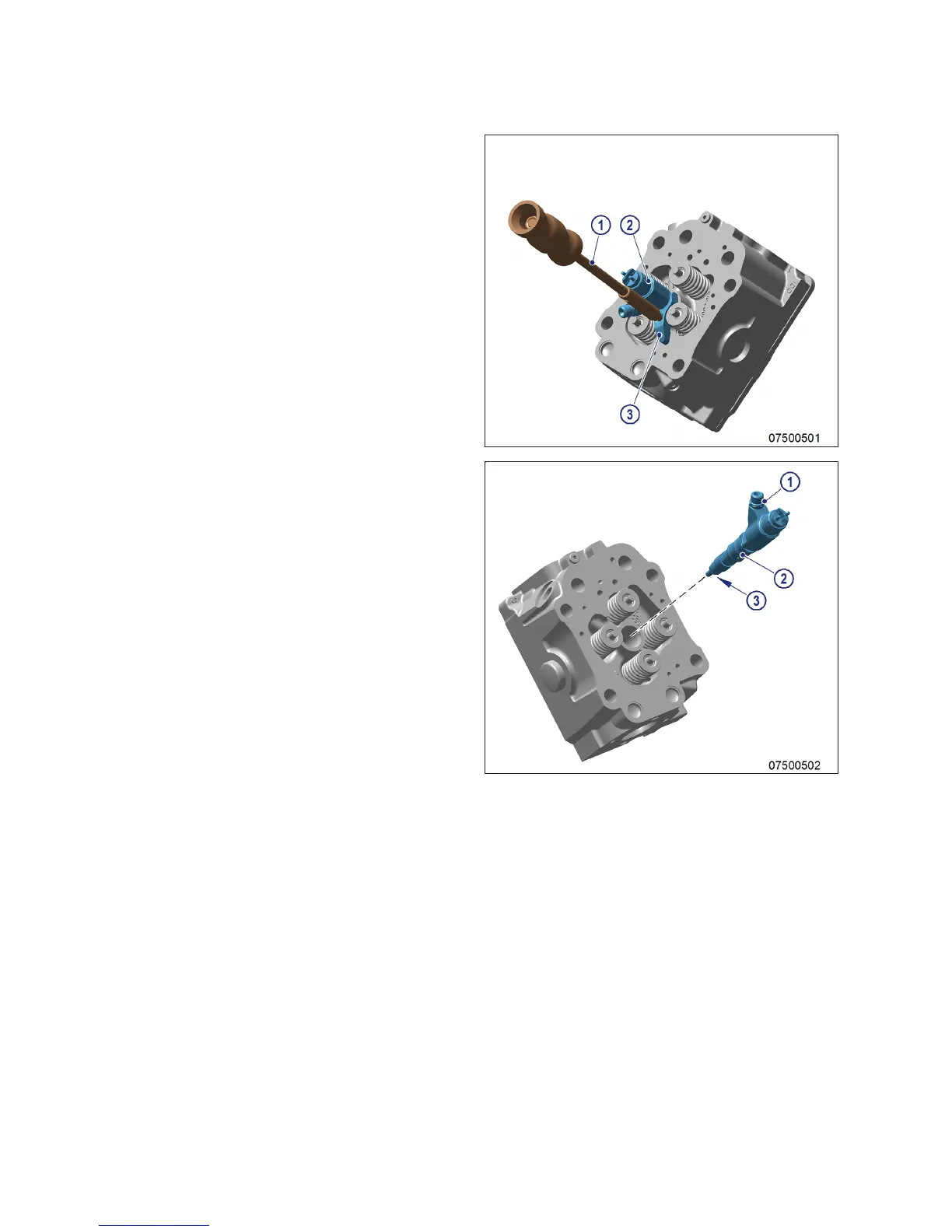

6. Fit puller (1) on hold-down clamp (3).
7. Withdraw injector (2) and hold-down
clamp (3) with puller (1).
8. Remove O-ring (1) from injector (2).
9. Remove sealing ring (3) from injector (2).
10. Cover all connections and bores or seal with
suitable plugs.
Injector – Installation
1. Remove all covers and plugs prior to installation.
Note: Lubrication is not required if a sliding varnish-coated O-ring is used.
2. Fit new O-ring on injector with assembly sleeve and coat with assembly compound.
3. Secure new sealing ring with assembly compound on injector (2).
4. Clean sealing surface on cylinder head and protective sleeve.
90 | Injector |
MS150119/01E 2016-02
TIM-ID: 0000055245 - 006
