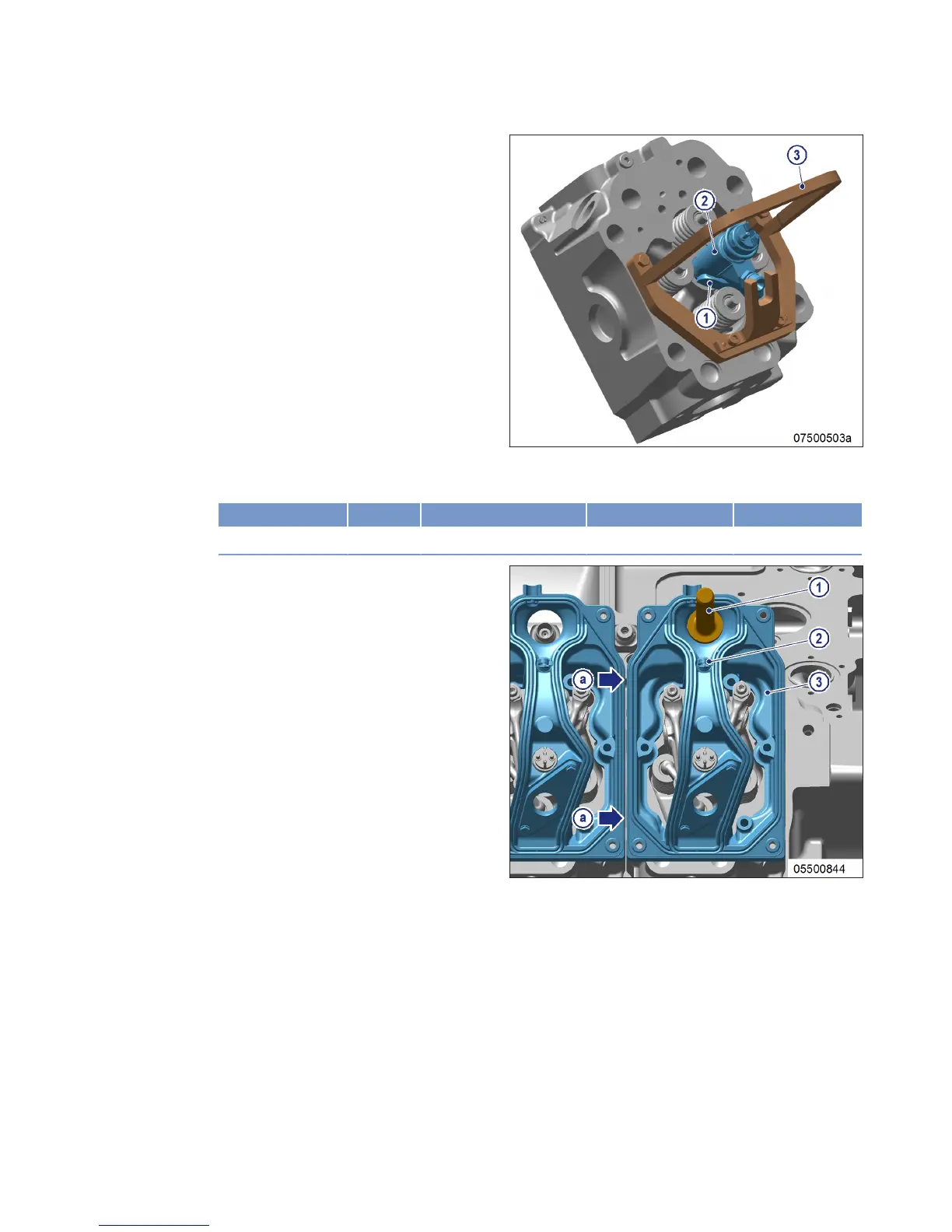

5. Press down injector (2) with hold-down
clamp (1) in cylinder head.
6. Align HP line connection with alignment de-
vice (3).
7. Fit hold-down clamp (1) in correct position,
coat retaining screw of hold-down clamp with
engine oil.
8. Screw in retaining screw for hold-down clamp and use screwdriver bit with torque wrench to tighten to speci-
fied tightening torque.
Name Size Type Lubricant Value/Standard
Retaining screw M8 Preload torque (Engine oil) 40 + 4 Nm
Note: Check and clean surface of bottom side of
cylinder head cover lower section.
9. Align cylinder head cover lower section (3)
with alignment mandrel (1) and install.
Note: If the covers are bolted on, ensure that
gap (a) between the covers is even.
10. Install cable clamps (2) and draw in the injec-
tor cable.
11. Screw cable onto control cable connection of
injector.
MS150119/01E 2016-02 | Injector | 91
TIM-ID: 0000055245 - 006
