12. Coat thread and sealing cone of HP line and
injector with engine oil.

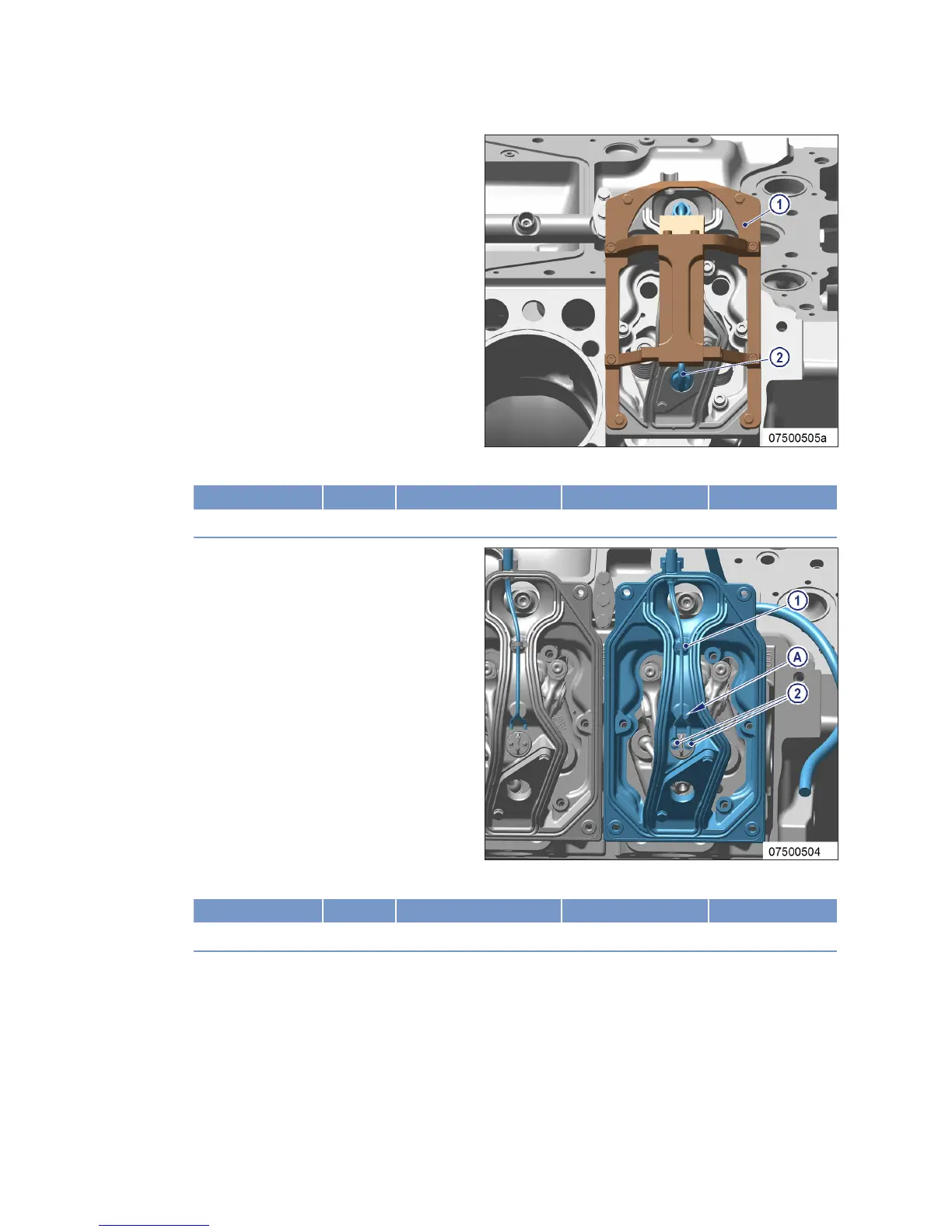

13. Align HP line (2) with alignment device (1).
14. Place HP line in position on HP accumulator
and tighten by hand.
15. Place HP line in position on injector and tight-
en by hand.
16. Tighten HP line with socket wrench and torque wrench to specified tightening torque.
Name Size Type Lubricant Value/Standard
HP line Tightening torque (Engine oil) 37 Nm + 3 Nm
Note: Ensure they run centrally (A). Do not pinch
them.
17. Secure cables (1) together with cable clamps.
18. Tighten cables (2) with battery-powered shutoff wrench to specified torque.
Name Size Type Lubricant Value/Standard
Crimped spade lug M4 Tightening torque 2 ±0.25 Nm
92 | Injector | MS150119/01E 2016-02
TIM-ID: 0000055245 - 006
