Only leak-off along the line is possible, the pressure decreases significantly if an O-ring (2) fault occurs.
The connection is confirmed as compliant with SOLAS by DNV and GL.
Plugs and sensors
Screw-in plugs (4) are sealed toward the outside either with a copper sealing ring (1), according to DIN, or an
O-ring (ISO).
In case of a loose thread or a faulty sealing ring (1), the liquid first has to pass the thread.
The pressure is so greatly reduced by this and the faulty sealing ring (1) that any leakage is not under pres-
sure.

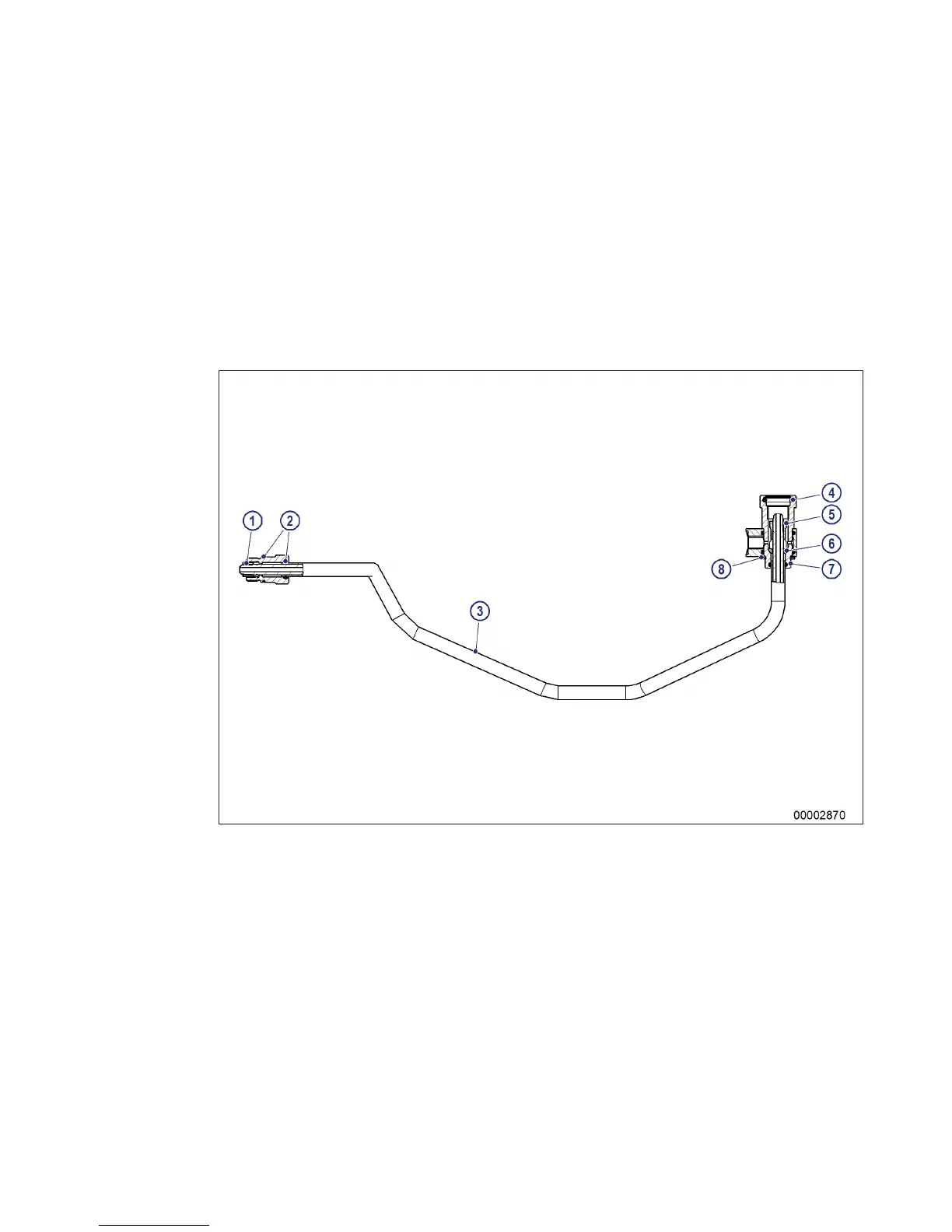

HP line between injector and HP accumulator
1 Thrust ring
2 O-ring
3 HP pipe
4 O-ring
5 Thrust ring
6 Spherical sliding disk
7 Thrust ring
8 Union nut
9 Compensating washer
MS150119/01E 2016-02 | General Information | 33
TIM-ID: 0000067013 - 001
