Venting fuel system with rever-
sible filters

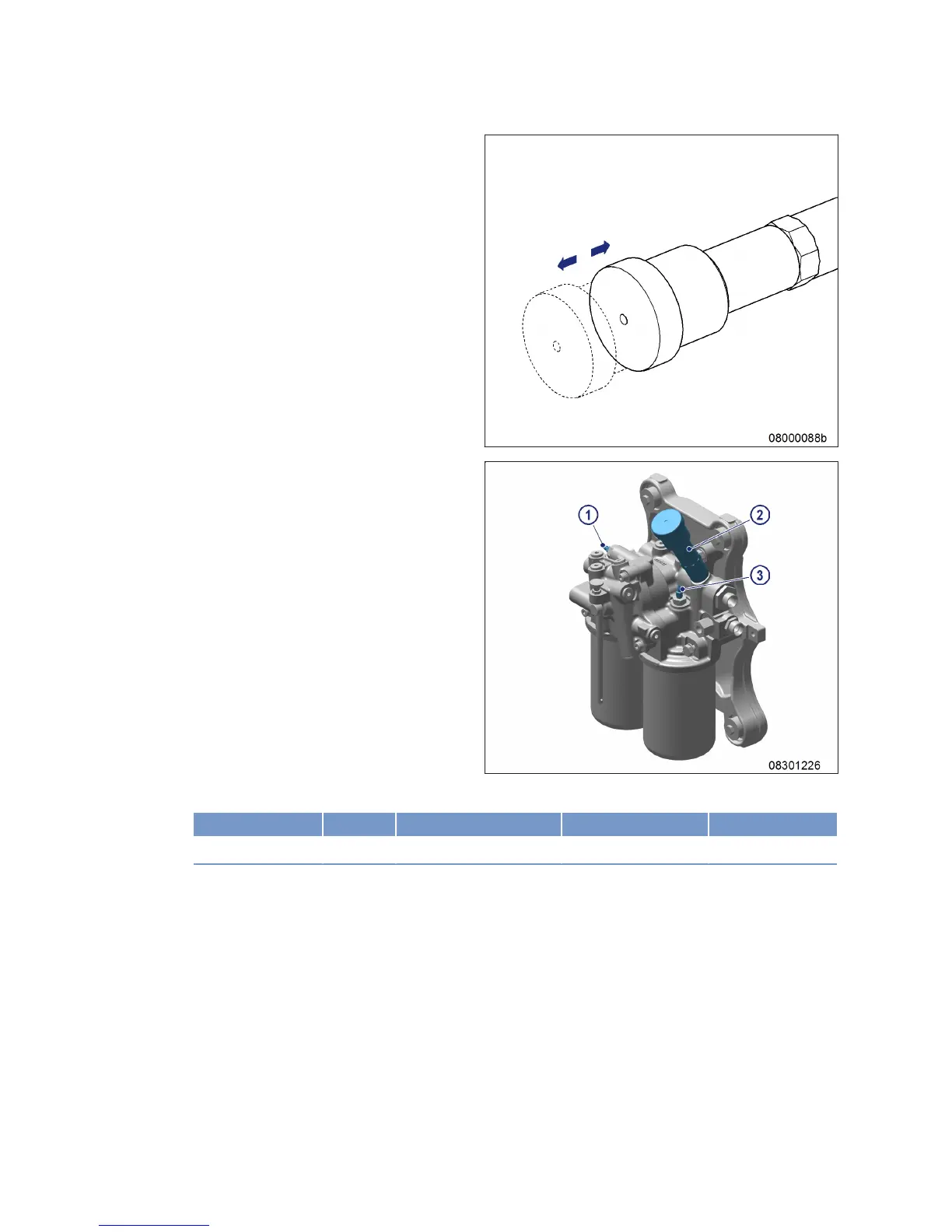

1. Unlock fuel priming pump, unscrew handle.
2. Open vent screws (1) and (3).
3. Operate handle (2) until bubble-free fuel
emerges from the threaded vent plugs (1)
and (3).
4. Tighten threaded vent plugs (1) and (3) to specified torque:
Name Size Type Lubricant Value/Standard
Threaded vent plug M8 Tightening torque 6 Nm +2 Nm
5. Secure the fuel priming pump.
6. Screw in handle (2) on fuel priming pump.
