MTU 8V4000Mx4 - Page 37

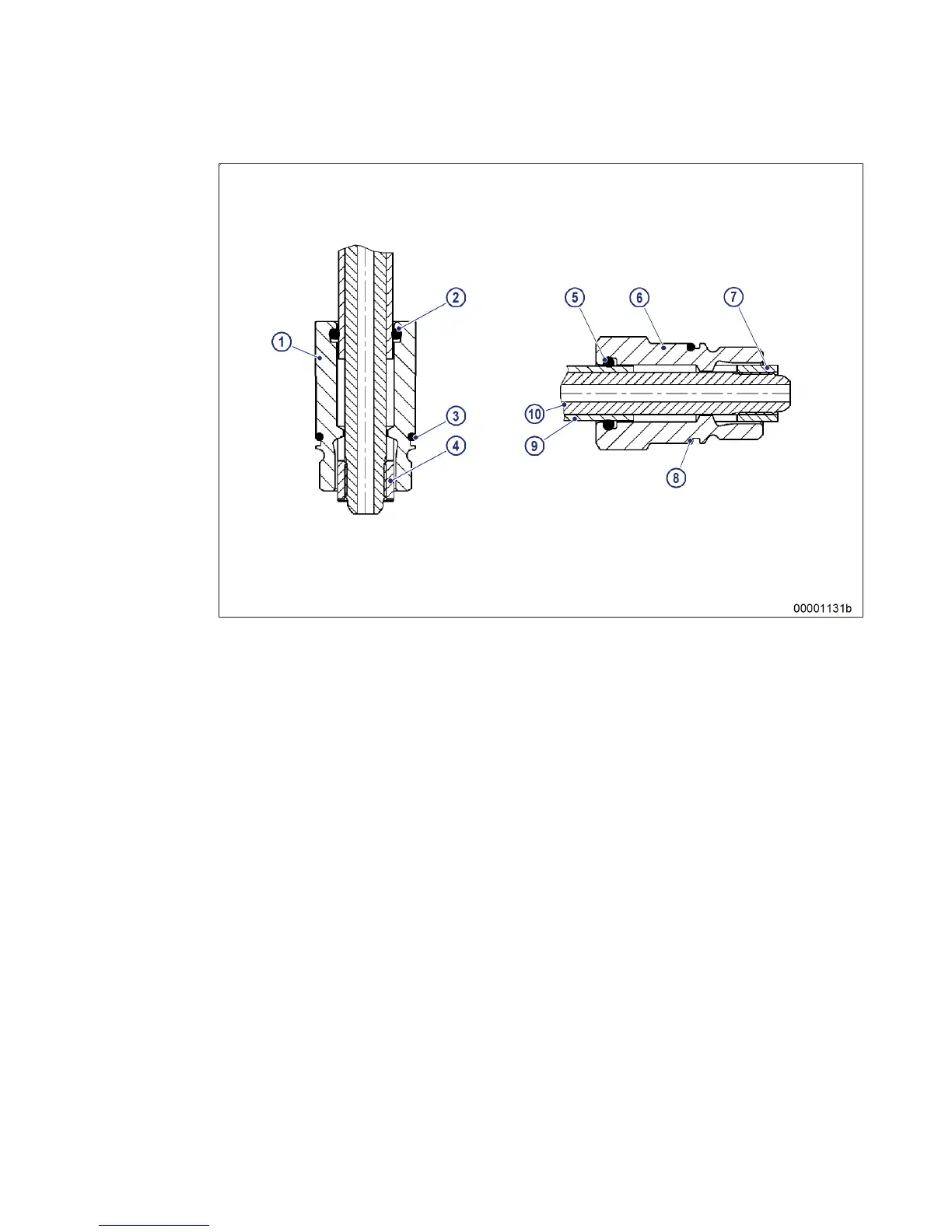

HP line between distributor and HP accumulator
1 Jacket pipe
2 O-ring
3 O-ring
4 Thrust ring
5 O-ring
6 Thrust screw
7 Thrust ring
8 O-ring
9 HP line
10 Pressure pipe
