2.4 Engine overview

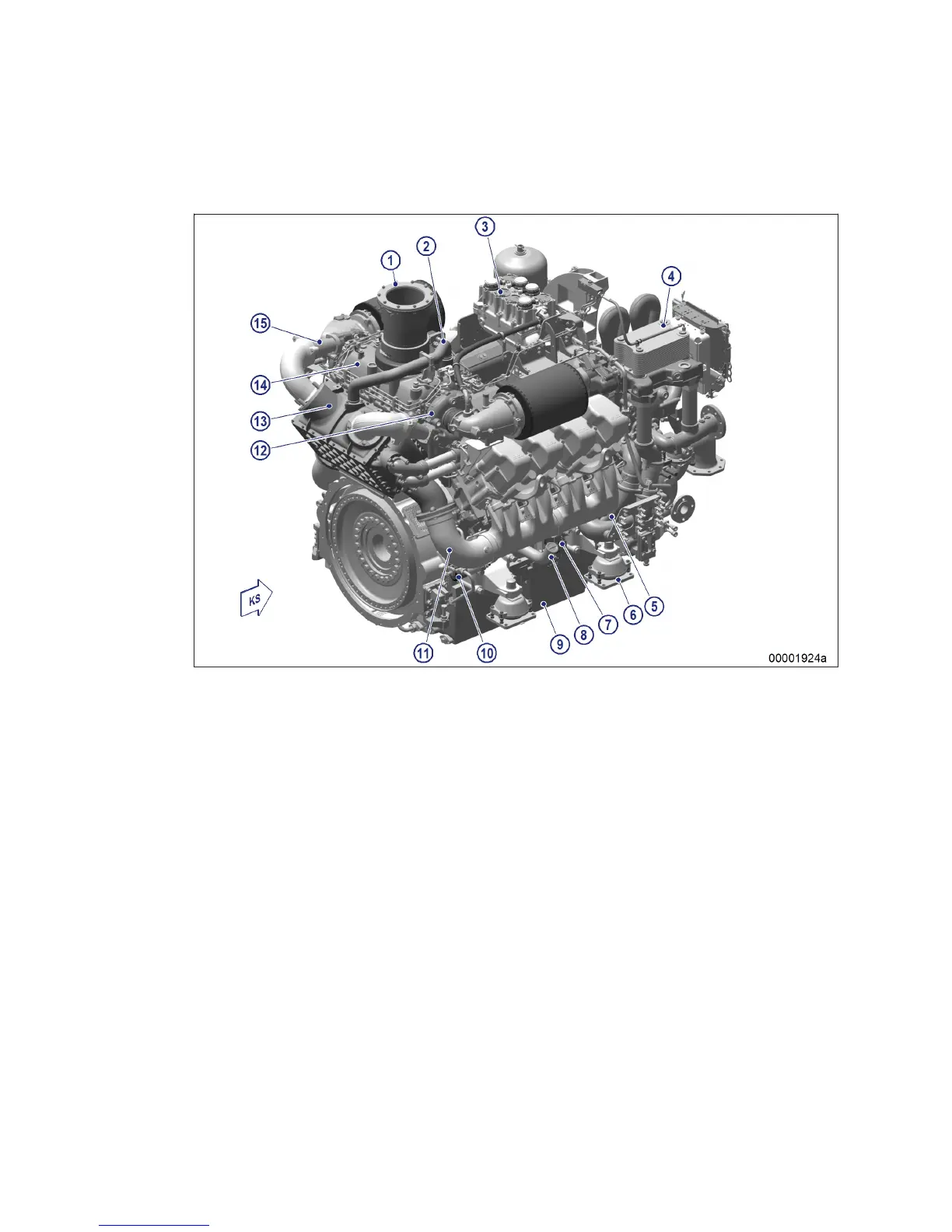

Overview with remote heat exchanger, driving end
1 Exhaust outlet
2 Recirculation line
3 Crankcase breather
4 Oil cooler
5 Coolant pump
6 Engine mounting
7 EIM (Engine Interface Mod-
ule)
8 Oil filler neck
9 Oil pan
10 Crankcase
11 Charge-air line
12 Compressor housing
13 Intercooler
14 Exhaust turbocharger carri-
er housing
15 Air pipe to intercooler
KS Driving end
