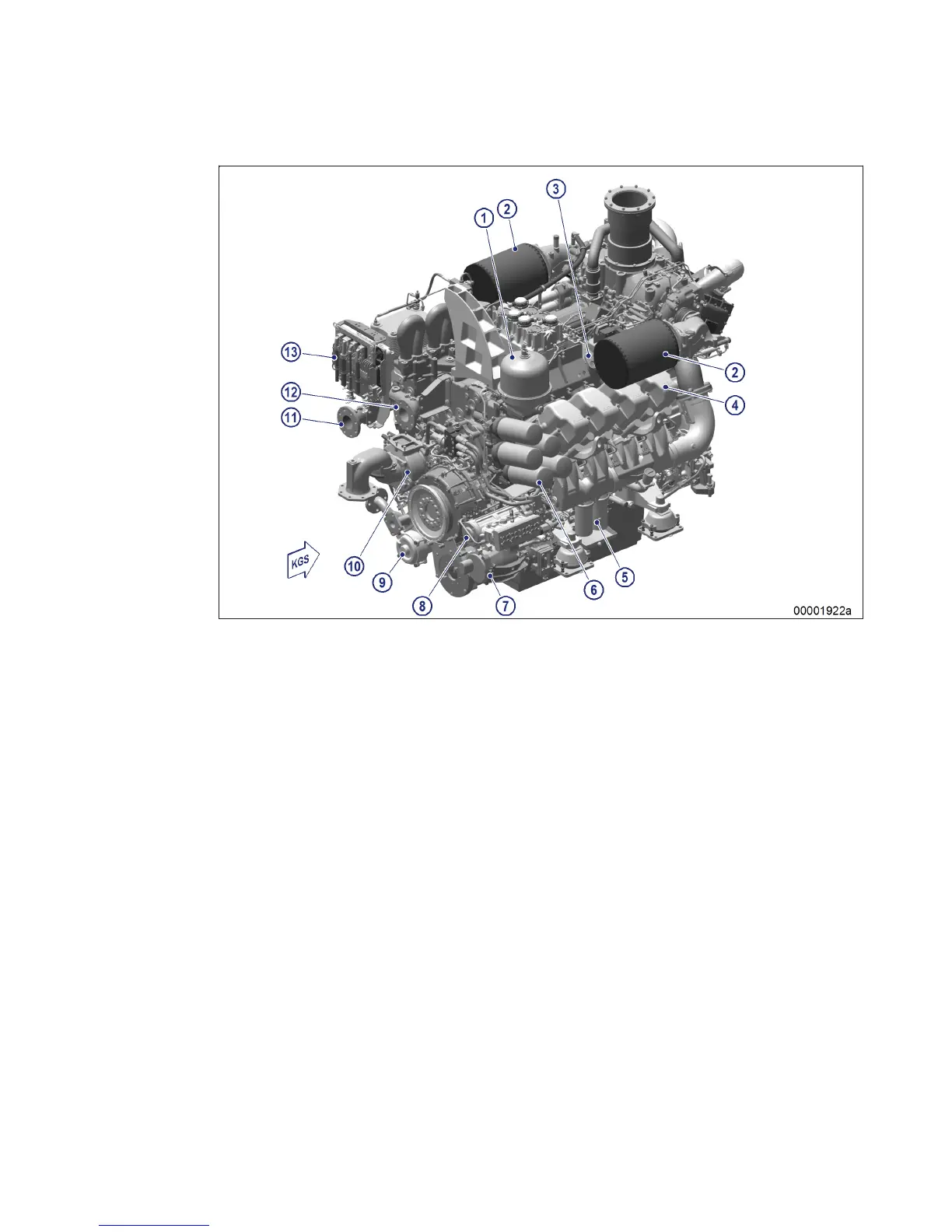

Overview with remote heat exchanger, free end
1 Centrifugal oil filter
2 Dry-type air filter
3 Exhaust manifold
4 Cylinder head
5 Fuel filter
6 Oil filter
7 Battery-charging generator
(optional)
8 HP fuel pump
9 Bilge pump (option)
10 Raw water pump (optional
for engines with remote
heat exchanger)
11 Coolant outlet from remote
cooling system
12 Coolant outlet to remote
cooling system
13 Engine management and
monitoring
KGS Free end
